4 x 12 HD Video Wall Processor & Matrix Switch

MXWALL-LT-0412-S

$7,999.00$6,232.99
Save $1,766.01
FREE Shipping on orders over $100

The MXWall-LT is a video wall processor and matrix switch with 4 HDMI inputs and 12 DVI outputs. Compact, plug-and-play, and excellent for mid-sized video wall displays between 4-12 screens with resolutions up to 1080p (1920x1080 @ 60Hz) Full HD. The MXWall-LT is simple to control, outfitted with easy front-panel buttons and optional RS-232 control. Included at no cost is the MXWall Manager software, which allows users manually create and adjust their ideal video wall displays using simple click-and-drag operation. Users can choose from a number of great per-configured screen modes as well, displaying content in full video wall, four-screen quad, and individual screen modes with the press of a button. The MXWall-LT also features TCP/IP web control for LAN-connected units, so users can control the contents of the video wall from the comfort of a PC workstation. Its compact design and powerful processing power makes the MXWall-LT the perfect solution for any video wall installation. Plug-and-play, the LT is immediately ready for use as soon as it is connected to an AV set-up; no additional drivers or installers required.

Features & Benefits

  • Complete, Real-Time Hardware Solution
  • Plug-and-play ready
  • (4) HDMI inputs
  • (12) DVI outputs
  • Output resolution up to 1080p (1920x1080 @ 60Hz)
  • Supports RS-232 and TCP/IP
  • Reliable 24/7 Uninterrupted Use
  • Flexible video wall modes
  • Easy control (front-panel buttons, software, and optional RS-232)
  • HDCP and HDMI 1.4 compliant
  • Includes user-friendly MXWall Manager Software: FREE!
  • Integrated scaler

In the Box

  • (1) MXWall-LT Video Wall Processor and Matrix Switch
  • (1) Power Supply
  • (1) MXWall Manager software installation CD
  • (1) User Manual

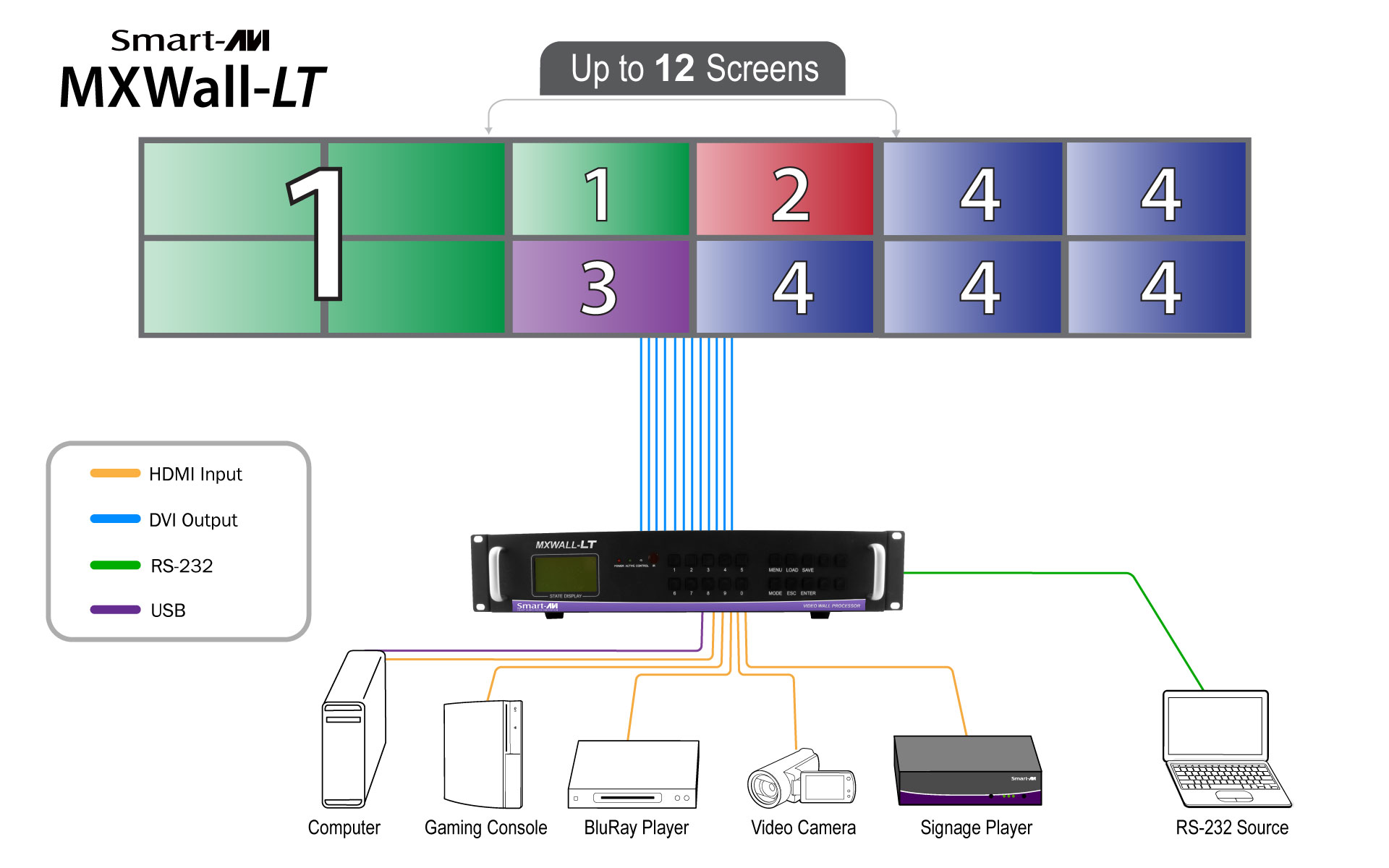

MXWall-LT Use Diagram

Product Specifications

Video
Video Amplifier Bandwidth32.G
Input Video SignalVideo (TMDS) 0.5~1.0 Vpp
Input DDC Signal5 Volts
CompliancesHDMI 1.4 and HDCP compliant
Pixel RatesClock frequency beyond 165Mpix/second
Format4:4:4 and 4:2:2 data input formats
Resolution480p, 720p, 1080i, 1080p
Input Card Format(4) HDMI
Output Card Format(12) DVI
Input Slots1 Card of 4 HDMI inputs
Output Slots3 cards of 4 DVI outputs
Video TypeRGB/YCBCR : 24/30/36-bits, YCBCR: 8/10/12/16/20/24-bits
Controls
FrontFront-panel tactile switch buttons
RS-2329600bps, Software flow DB9 Female
TCP/IPTelnet
Environmental
Operating Temperature32°F - 131°F (0-55°C)
Humidity10-90% non-condensing
Mechanical
Weight20 lbs
Width17 in
Height3.5 in.
Depth15 in.
Power
Power Supply50/60Hz, 100-230 VAC
Consumption300W
Have a question about this product? Ask here!
Your contact info is kept private.
Is this item returnable? Do you do price matching?
Thank you for your inquiry.

SmartAVI products are accepted for return up to 20 days from the ship date and are subject to a restocking fee. Please see our full return policy on our Ordering Info & Site Policies page.
Unfortunately, we do not price match at this time.
0% of 0 people found this helpful. Was this helpful to you? Yes(0) | No(0)
