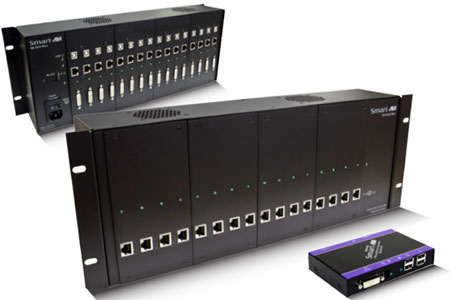

SmartAVI RK-DVX-PLUS-TX4S Transmitter

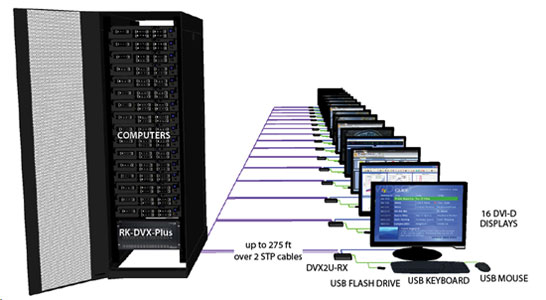

The RK-DVX-Plus is the perfect solution for extending DVI-D and USB 1.1 signals to a remote location up to 275 feet away. It is the ideal way to consolidate 4 workstation computers into one location. The RK-DVX-Plus features dual DVI-D extension up to 275 feet over STP. It is fully compatible with MAC, PC and LINUX DVI standards.

The RK-DVX-Plus also features transparent USB 1.1 signal extension, with full support for all USB 1.1 devices and an integrated 4-port hub in the receiver. Flas Drives, Printers, Cameras, Scanners, etc. may all be used with the RK-DVX-Plus.

*Transmitter only, 4 card package

Applications

• Medical Applications
• Industrial Work Areas
• Home Theater Integration
• Digital Signage Deployment
• Information Kiosks/Displays
• Film/Recording Studios

Features

• Supports DVI-D single-link
• Supports Mac, PC, and Linux DVI
• Supports High Resolution 1920x1200 60Hz WUXGA
• Distance: 275 feet with two CAT6 STP cables
• Uses universal DVI Single Link connectors
• Zero pixel loss with TMDS signal correction
• DDC from internal table for Mac/PC
• Supports all USB 1.1 Devices Transparently
• (Flash Drives, Printers, etc.)
• Supports USB 1.1 keyboard and mouse
• Compatible with all operating systems
• Compatible with all major KVM switches
• Rack Mountable Solution
• Data recovery for digital video
• Supports 1.5 and 12Mbps data rates
• Plug-and-play

SmartAVI RK-DVX-PLUS-TX4S Specifications

UPC 813280022989
EAN 0813280022989
