Powered Rack/Chassis w/Dual DVI-D, Audio, USB, CAT6 STP Receiver, 8 Card Package
RK-DVX2U-A-RX8S
Save $1,037.44

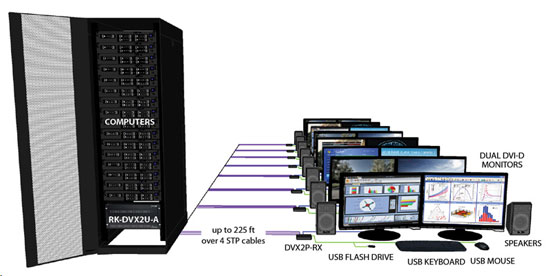

The 8-Port RK-DVX2U-A Receiver is the perfect solution for extending dual DVI-D displays, Audio and USB 1.1 devices to a remote location up to 225 feet away. It is the ideal way to consolidate up to 4 workstation computers into one location. It is fully compatible with MAC, PC and LINUX DVI standards. The RK-DVX2U-A features transparent USB 1.1 signal extension, with full support for all USB 1.1 devices and an integrated 4-port hub in the receiver. Flash Drives, Printers, Cameras, Scanners, etc. may all be used.
Applications
- Medical Applications
- Industrial Work Areas
- Home Theater Integration
- Digital Signage Deployment
- Information Kiosks/Displays
- Film/Recording Studios

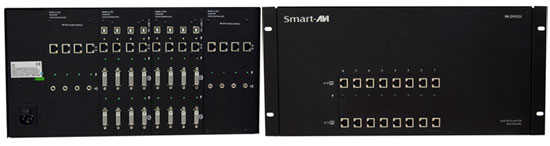

Back Front
Features
- Supports up to 2 DVI-D single-link sources
- Supports Mac, PC, and Linux DVI
- Supports High Resolution 1920x1200 60Hz WUXGA
- Distance: 225 feet with four CAT6 STP cables
- Uses universal DVI Single Link connectors
- Zero pixel loss with TMDS signal correction
- Automatic DDC Learning
- Supports all USB 1.1 Devices Transparently
- (Flash Drives, Printers, etc.)
- Supports USB 1.1 keyboard and mouse
- Compatible with all operating systems
- Compatible with all major KVM switches
- Rack Mountable Solution
- Data recovery for digital video
- Supports 1.5 and 12Mbps data rates
- Plug-and-play
SmartAVI RK-DVX2U Receiver Specifications
| Mechanical | |
| Height | 8.5 in. (21.59 cm) |
| Width | 17 in. (43.18 cm.) |
| Depth | 3.25 in. (8.25 cm.) |
| Format | DVI-D Single Line |
| Maximum Pixel Clock | 165 MHz |
| Input Interface (TX) | 8x (2) DVI-D 29 pin female |
| Output Interface (RX) | (2) DVI-D 29-pin female |
| Resolution | Up to 1920x1200 @ 60Hz |
| DDC | 5 volts p-p (TTL) |
| Audio Frequency | 20Hz to 20KHz |
| Impedance | 600 ohm |
| Power | Internal 110-240 VAC |
UPC 813280022880
EAN 0813280022880
