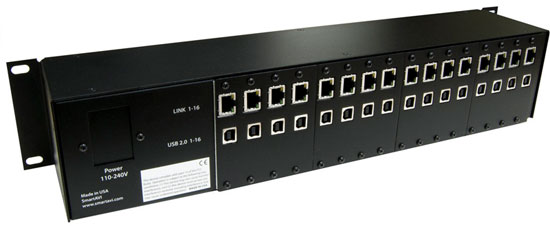

Powered Rack/Chassis with 16 USB 2.0 CAT5 Transmitters
RK-USB2-16S

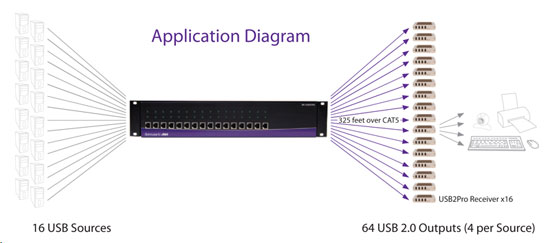

The RK-USB2Pro extends sixteen USB 2.0 input devices to sixteen USB2Pro receivers. It supports all USB 2.0 high-speed devices, from keyboards to digital cameras and will operate on Windows¨, Mac and Linux¨ operating systems.
The USB2Pro receivers have an integrated four-port hub that allows for multiple devices to be connected at once. This means the RK-USB2Pro can extend sixteen USB 2.0 inputs to 64 outputs. Additional USB hubs can be added, increasing the amount of devices that can be plugged into the USB2Pro.
Applications
- KVM Extension
- Digital Signage
- Home Networking
- Remote USB Connections
- USB Device Sharing
- Webcam
- USB Electronics Devices
- Security Systems
Features
- Supports USB 2.0 and 1.1 Devices
- Works on Windows¨, Mac and Linux¨ Operating Systems
- Receiver has an Integrated Four-Port Hub
- Rack Mountable (2U) with Internal Power Supply
- Extends up to 325 feet
- Plug-and-Play
SmartAVI RK-USB2Pro Specifications
| Mechanical | |
| Height | 3.37in. (8.55 cm) |
| Width | 19 in. (48.26 cm.) |
| Depth | 5.25 in. (13.33 cm.) |
| Input Interface | USB-B 2.0 Female |
| Link Connector | 16 x RJ45 |
| Power Supply | Universal Switch Mode PSU (90-240V Input) 5VDC |
UPC 813280023009
EAN 0813280023009
