2U 15" LCD & Keyboard Drawer, Short-depth, w/ 8-Port USB KVM Switch
RKP2415-S801
The AH RKP2415-S801 is a combination of keyboard, mouse and monitor into a drawer with features such as flip-up design, adjustable brackets, built in LCD OSD to provide effective assistant for an administrator to control PC system. The following keyboard options are available for the RKP2415-S801:
RKP series provides cost effective for your limited IT budget over using CRT and rack mounting. Also, it will be space saving for your compact environment rack and effective assistant for an administrator to control connected systems
RKP2415-S801 Features:
- 2U 15" TFT LCD screen
- 1,024 x 768 with 60 / 70 / 75Hz
- 440mm deep for 15"/ 17" TFT LCD display
- 480mm deep for 19" LCD display

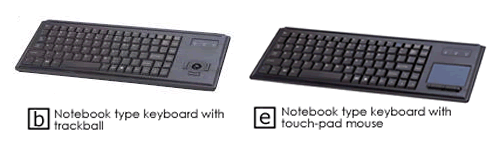

- Two keyboard selections, "e" and "b" support multiple languages
- Adjustable mounting brackets from 390 to 700 mm
- Slide rails have fixed position to prevent movement of the keyboard & screen
- All mounting hardware included
- 12, 24, 48-Volt DC power supply options
| Mechanical | |
| Height | 3.5 in. (8.8 cm.) |
| Width | 17.4 in. (44.2 cm.) |
| Depth | 17.3 in. (44 cm.) |
| Weight | 37 lbs. (17 kg.) |
| Package Dimensions (H x W x D) | 8.7 x 23.6 x 24.4 in. (22 x 60 x 62 cm.) |
| Package Weight | 51 lbs. (23 kg.) |
| General | |
| Form factor | 2U short depth, separate slide-out screen & keyboard |
| Color | Black |
| Compatibility | Multi-platform - Mix PCs, SUNs, IBMs, HPs & DELLs |
| Server-side Interface | HD15 VGA, USB Type A for KB/MS |
| Rack Mounting | Adjustable ranges from 15.3" to 27.5" (390 to 700mm) |
| Environmental | |
| Operating temperature | 0 to 50 Degree Celsius |
| Storage temperature | -5 to 65 Degree Celsius |
| Relative Humidity | 5~90%, non-condensing |
| Shock | 10G acceleration (11ms duration) |
| Vibration | 5~500Hz 1G RMS random vibration |
| Power | 110 or 220 VAC at 50 or 60 Hz via AC adapter (12V, 5A) |
| LCD Screen | |
| LCD Manufacturer | Samsung |
| LCD Origin | South Korea |
| Display Size | 15 inch diagonal |
| LCD Type | Samsung grade A industrial TFT LCD Panel |
| Resolution | 1,024 x 768 with 60 / 70 / 75Hz |
| Display color | 16.2 M |
| Brightness | 450 cd/m2 |
| Contrast Ratio | 400:1 |
| Response Time | TR=5/ Tf=20 ms |
| Pixel Pitch | 0.297 (H) x 0.297 (V) mm |
| Viewing Angle | 70/ 70/ 60/ 65 (L/R/U/D) |
| OSD Control | Brightness, Contrast, Phase & Clock, Color, H & V Position, Auto-tune, Recall & Language |
| Signal Input | VGA, Analog RGB |
| Option Video Input | S-video & Composite |
| LCD MTBF | 50,000 hrs |
| Integrated KVM Switch | |
| KVM port | 8 port HD15 female |
| Port access | Channel button or hot keys selectable |
| Indicators | Online (green) and selected (red) status LED |
| Cascade expansion | Up to 128 ports/servers |
| KB/MS emulation | PS/2, with microprocessor support hot-plugging |
| Server-side interface | VGA HD15, analog RGB and 2 x 6-pin mini DIN |
| Support platform | MS Windows 3.x/95/98/2000/XP/NT4.0, Solaris, Novel, SCO Unix and MS DOS |
| KVM Cable | "CD" series PS/2 cable with 6, 10, 15 & 33 feet option (8- 6ft. cables included) |
| Cascade Cable | "CA" series cable to PS/2 KVM switch with 2, 6 feet option (sold separately) |
