1X4 Multi-Screen Digital Signage System
SAVI-SSQ100s
Save $375.10

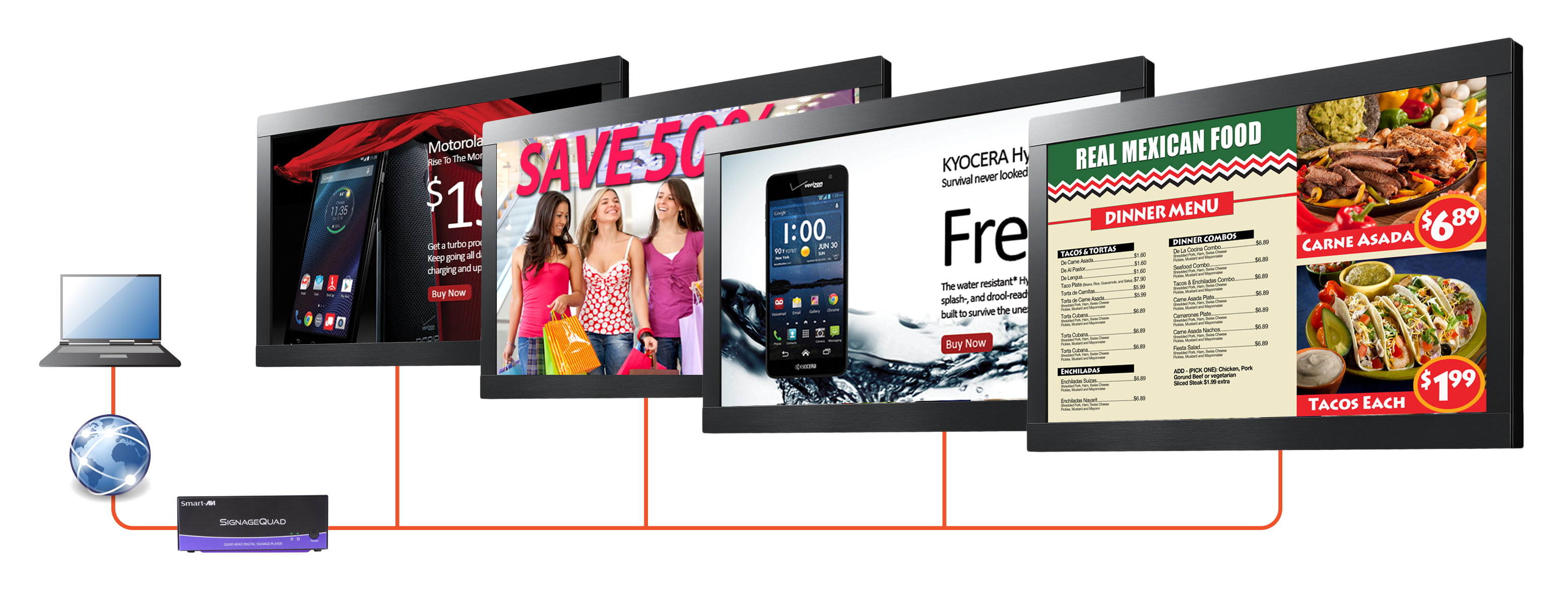

SignageQuad offers SmartAVI's signature easy-to-use design with four times the output. The player sends 1080p HD signals to four displays when you need them most. Simply create your ideal layout, schedule it for display in our intuitive software, and watch as four screens come to life from one convenient box.
Product Benefits and Features
- Instantly Eye-Catching: Customers can't look away.
- Alive With Vivid Color: Run 1080p HDTV Resolution Video or looping slideshows.
- Unique: Make it fit your brand with fully-customizable display templates.
- Fully Automatic: Your display will run content automatically according to schedules you make so it's no hassle.
- Monetizable: Greater profits are guaranteed by selling advertising space on your digital signage screens.
- Flexible: Need to change something immediately? Easily update your display's content over the internet.
- Intuitive: You don't need a PhD to use it. Learn how to use all features like a pro in no time.
- Fully Operational: It's Plug-And-Go so you can install it instantly!
| Mechanical | |
| Width | 17 in (431.8 mm.) |
| Height | 3.5 in. 2U (88.9 mm.) |
| Depth | 15 in. (381 mm.) |
| Supported Formats | |
| Image | JPG, GIF, Animated GIF |
| Video | AVI, WMV9, MPEG-2 PS, MPEG-1, MPEG-2 MP@ML, MPEG-4.2 ASP, MPEG-4.10/H.264, MP@L3.0 |
| Audio | MPEG-1 Layer I, II, MPEG-4 AAC |
| Other | Excel, Powerpoint, PDF, HTML, Flash, Quicktime, RSS |
| Processor System | |
| CPU | AMD Embedded eTrinity R-series APU |
| Core | 4 cores, 2.3GHz |
| BIOS | UEFI supports Win 8 fast boot |
| Memory | |
| Technology | Dual Channel DDR3 1600 MHz SDRAM |
| Socket | 2 x SO-DIMM |
| Max | 8GB |
| Graphics | |
| Integrated VGA | AMD Radeon GPUs (Radeon HD 7660G series), support DX11, UVD3 |
| HW Decoder | H.264, VC-1, MPEG-2, DivX |
| HDMI | Supports up to 1920 x 1200 |
| Ethernet | |
| Interface | 10/100/1000 Mbps |
| Controller | Realtek RTL8111E |
| Connector | 2 x RJ-45 connector |
| Audio | |
| Chipset | ALC662 |
| Other | |
| Onboard Connectors | Mini-PCIE (1), SO DIMM (2), mSATA (1) |
| Onboard Headers | USB 2.0 (1), GPIO (1 [2x3 pins]), Front Panel Header (1), SATA conn. (1) |
| Front I/O | Serial port 2xD-sub 9 pins, Power on button x1 |
| Rear I/O | USB 3.0 (2), USB 2.0 (2), Audio Jack (1 line out-Mic 1), RJ45 (2) Gigabit LAN, HDMI output (4), Power in Jack (1) |
| Power | 65W, 12V 5.4A |
| Operating Temperature | 32-131°F (0-55°C) |
| Storage Temperature | -4-176°F (-20-80°C) |
UPC 813280023108
EAN 0813280023108
