Avocent SwitchView SC 1x2 Secure KVM w/ Intrusion Detection
SC120-001
The Avocent Cybex SwitchView SC120-001 is a 1x2 KVM Switch with intrusion detection. This KVM Switch includes three layers of tamper-proof hardware security to enhance security at the desktop. In addition, SwitchView SC100 switch ensures that only USB human interface devices (HIDs) function on target computers by constantly monitoring all devices attached to the console ports. This KVM switch ignores communication from non-HIDs (such as flash drives, hard disk drives, cameras and printers) when switching data to the target. In situations where the only USB port(s) for HIDs are enabled on the target computer, the SwitchView SC switch will not introduce security vulnerabilities. The SwitchView SC100 switch offers flexible connectivity with support for USB and/or PS/2 peripherals and target computers.
Avocent SwitchView SC Features & Benefits:
- Software security: U.S designed firmware allows only keyboard and mouse human interface devices (HID) to switch to the target computers. Devices that can be considered unsecure such as flash drives or other mass storage devices, cameras and all other USB devices are strictly prohibited by the switch firmware
- Three layers of hardware security:
- Tamper-evident tape: A visual indication of an attempt to gain access to the internal components of the switch
- Chassis intrusion detection: Prevents malicious tampering with the unit. If the cover is removed from the switch, the switch becomes inoperable and the LEDs flash
- Locked memory: Prevents tampering and reprogramming of the firmware
- Secure channels. Two to eight fully secure channels
- Clears buffer. Automatically clears the keyboard buffer immediately after data is transmitted through the switch, so no data is ever left in the switch.
- Certification. NIAP Validation to EAL4+ in process
- User: Includes USB and/or PS/2 peripheral and target computer support for seamless desktop transition. Provides VGA video resolution up to 2048x1536 @ 85Hz

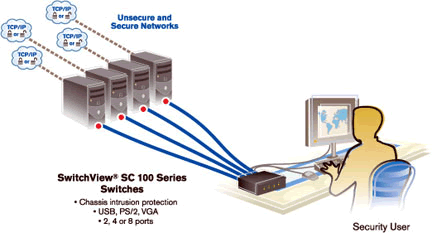

Avocent SwitchView SC 100 Series Application Diagram
Avocent SC120 Specifications:
| Mechanical | |
| Height | 1.72 in. (4.37 cm.) |
| Width | 10.36 in. (26.31 cm.) |
| Depth | 5.68 in. (14.43 cm.) |
| Weight | 2.3 lbs. (1 kg.) |
| Environmental | |
| Operating Temperature | 32˚ to 104˚ F (0˚ to 40˚C) |
| Storage Temperature | 4˚ to 122˚ F (-20˚ to 50˚C) |
| Power | |
| Operating Voltage | 100-240V |
| Power Frequency | 50-60 HZ |
| Input | .8A |
| Supported Hardware | |
| Computers | IBM, Sun, PC/AT, USB, PS/2 and 100% compatibles |
| Monitor | VGA, SVGA, XGA, SXGA, UXGA, WVGA, WSVGA, WXGA, WSXGA, WUXGA, and HDTV. Maximum Resolution: 2048x1536@85Hz |
| Peripherals | USB and/or PS/2 keyboard, USB and/or PS/2 mouse |
| Standards | |
| Approved Agency | CE, UL 60950-1, CSA C22.2 No 60950-1, EN60950 FCC Part 15 Class B, EN55022 Class B, EN55024, 61000-3-2, 61000-3-3, VCCI Class B, Ctick, CISPR22, ICES-003, PENDING NIAP Common Criteria EAL4+ |
Answer: Thank you for your inquiry. The limited warranty is 2-years. The procedure for a warranty claim starts by contacting the Avocent's technical support department.
Here is a list of Avocent Customer support contacts:
http://www.emersonnetworkpower.com/en-US/Services/InfrastructureManagement/CustomerSupport/Pages/CustomerSupportContacts.aspx
Information regarding the Avocent SwitchView SC Family Limited Warranty can be found here:
http://www.emersonnetworkpower.com/en-US/Services/InfrastructureManagement/CustomerSupport/HardwareSupport/Pages/SwitchView-SC-Switch-Warranty.aspx.
