Smart-AVI 1-port DVI-D HDBaseT, USB, RS232 and IR CAT5/5e/6 Extender
SDX-Plus-S
Using HDBaseT technology, the SDX-Plus DVI extender is capable of sending a DVI-D signal up to 400 feet over a single conventional and inexpensive CAT5/5e/6 cable. HDBaseT technology is superior to older DVI extenders that require special CAT6 shielded cable to go a short distance. The SDX-Plus also has USB keyboard and mouse, RS232 and IR extension, giving you the ability to control your displays or devices remotely.
Smart-AVI SDX-Plus Features and Benefits:
- Extends DVI-D up to 400 feet (120m) from the source
- Data recovery for digital video
- Supports up to 1920x1200 digital video resolution
- Automatic DDC Learning
- USB Keyboard and Mouse
- Uncompressed Video HDBaseT
- IR and RS232 extension allows for remote control of displays
- External power adapter for transmitter and receiver unit
- Plug and play

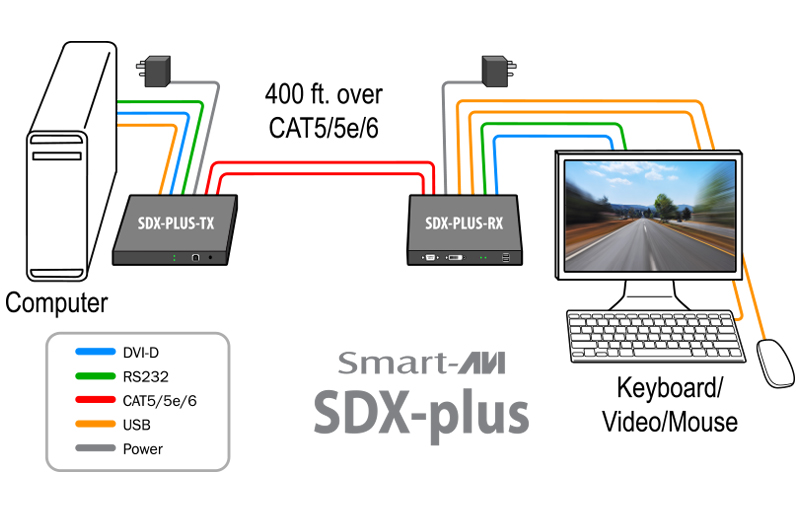

Smart-AVI Super Range DVI-D RS232 and IR Extender Diagram
(SDX-Plus-S depicted here)
Smart-AVI SDX-Plus Applications
- Security
- PC Networking
- Conference Center Systems
- Point of Sale
- Camera Surveillance
- Video Phone
- Control Room Systems
- Recording Studio
- PC KVM Extension
Smart-AVI SDX-Plus Specifications:
| Mechanical | |
| Width | 5.125 in. |
| Height | 1 in. |
| Depth | 3.625 in. |
| Weight | 0.5 lbs. |
| Environment | |
| Operating Temperature | 0-55 °C (32-131°F) |
| Storage Temperature | -20 - 85 °C (-4 - 185 °F) |
| Humidity | Up to 95% |
| Video | |
| Resolution | Up to 1920 x 1200 @ 60 Hz |
| Format | DVI-D Single Line |
| Maximum Pixel Clock | 165 MHz |
| Input/Output Interface | 2 x DVI-D 29-pin |
| DDC | 5 volts p-p(TTL) |
| Input Equalization | Automatic |
| Input Cable Length | Up to 20 ft. |
| Output Cable Length | Up to 20 ft. |
| Signal Type | EHCI (USB 2.0) and OHCI/UHCI (USB 1.1) |
| Input Interface (TX) | 1 x USB Type B |
| Output Interface (RX) | 4 x USB Type A |
| RS232 | |
| Input/Output Interface (TX/RX) | DB9 Female |
| Speed | Up to 115 Kbps |
| Data Rate | 2x 2.5 Gbps (2.5 Gbps per wavelength) |
| IR | |
| Frequency Response | 30KHz |
| Input Interface (TX) | 1 x 3.5mm |
| Output Interface (RX) | 1 x 3.5mm |
| Power | External 100-240 VAC/5VDC4A; 20W |
| USB | |
| Signal Type | OHCI/UHCI (USB 1.1) |
| Input Interface (TX) | 1 x USB Type B |
| Output Interface (RX) | 2 x USB Type A |
UPC 813280019262
EAN 0813280019262
