NTI VIDMUX 2 Port DVI/HDMI Video Switch with Audio
SE-DVI-2A
The NTI VIDMUX SE-DVI-2A is a 2 Port DVI/HDMI video switch that enables one DVI/HDMI display and speakers to be switched between up to two single link digital DVI/HDMI video sources.
NTI SE-DVI-2A Features:
- Supports DVI interface for crisp and clear video quality on flat panel display.
- Supports HDTV resolutions up to 1080p and computer resolutions to 1920x1200.
- Eliminates redundant video displays.
- Compliant with HDMI 1.3 and HDCP standards.
- Supports the DDC2B protocol.
- 3.5mm stereo audio input for each channel (Male to Male, 3.5mm jack, audio cable NOT included. PN: SA-xx-MM where xx is some length).
- Passes HDMI audio signal through DVI-I port.
- Transmit audio and video over a single cable with the DVI-HDMI-xx-MM male DVI-D to male HDMI cable.
- Control via top panel push button or infared remote (IR) control.
- IR remote control includes power on/off, mute function, and break-away audio (switch audio independent of video).

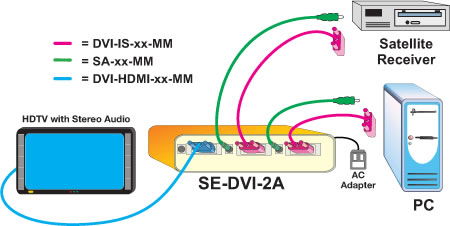

NTI 2 Port DVI Switch Application Diagram
NTI SE-DVI-2A Specifications:
| Mechanical | |
| Height | 1.1 in. (27.9 mm.) |
| Width | 2.3 in. (58.4 mm.) |
| Depth | 6.4 in. (162.6 mm.) |
| Power | 100 to 240 VAC at 50 or 60 Hz via AC Adapter |
| Audio/Video Input | Female DVI-I connectors. 3.5mm stereo audio jacks. Compatible with computers and HDTV video sources (satellite receivers, DVD players, etc) with single link digital DVI outputs. |
| Audio/Video Output | One Female DVI-I connector. One 3.5mm stereo audio jack. Single link DVI-D signal. Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200. |
| Cables | |
| Included | Three 6" Male to Female Stereo Audio low profile extension cables included. |
| To connect an DVI-D source or display with speakers | DVI-IS-xx-MM DVI-I cable and SA-xx-MM Male to Male Stereo Audio cable (Not Included) |
| To connect the video source or display with integrated speakers | DVI-HDMI-xx-MM DVI-D to HDMI interface cable (Not Included) |
| Regulatory Approvals | CE, FCC |
| Warranty | Two years |
Question: Hi. Does this switch do a SEAMLESS switch from source 1 to source 2? Meaning, will my projector go through that 'hunting for the next signal' process, along w/ the 'searching for source' icon popping up? I DON'T want that--must remain a nice black screen.
Answer: Thank you for your inquiry. The manufacturer responded that the SE-DVI-2A unit just switches the signal and does not provide an emulated video signal to keep the connection alive. So, unfortunately, the display will act as if the signal has dropped and will likely show the 'searching for signal' pop-up.
Answer: Thank you for your inquiry. The manufacturer responded that the SE-DVI-2A unit just switches the signal and does not provide an emulated video signal to keep the connection alive. So, unfortunately, the display will act as if the signal has dropped and will likely show the 'searching for signal' pop-up.
