Smart-AVI 2-port DVI-D, USB 2.0, Audio and RS232 Fiber Extender
SFX-2P-M-S
The Smart-AVI SFX-2P-M-S is a perfect solution for extending DVI-D and USB 2.0 signals from a computer in a remote location up to 1,500 feet away. The SFX-2P-M-S supports high-resolution DVI-D video and all USB device types from high-speed web cams, hard drives, printers, scanners, audio devices, touch screens, digital cameras and game controllers. The Smart-AVI SFX-2P-M-S is immune to electromagnetic interference, making it ideal for use in situations where there is considerable interference. The SFX-2P-M-S is also very secure because it's fiber optic signals cannot be easily tapped.
Smart-AVI SFX-2P Features and Benefits:
- Top Signal Quality at Maximum Extension
- Over Multimode Fiber (1,500 ft.) Plug Type LC
- DVI-D Video Resolutions up to 1920 x 1200 WUXGA at 60Hz
- Automatic Learning DDC for Mac/PC
- Supports USB 1.1 (12 Mbps) and USB 2.0 (480 Mbps) data rates
- Supports all USB device types transparently (no emulation)from high-speed web cams, hard drives, printers, scanners, audio devices, touch screens, game controllers and more
- Integrated Four-Port Hub in the receiver
- Compatible with all operating systems
- Extends Stereo Audio
- Extends RS-232
- Plug and play

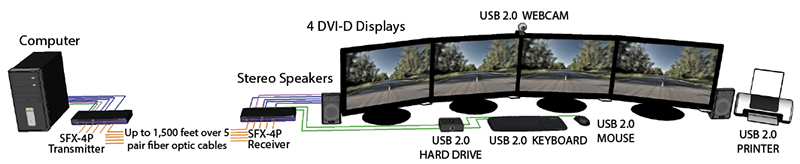

Smart-AVI DVI-D USB Audio and RS232 Fiber Extender Diagram
(SFX-4P depicted here)
Smart-AVI SFX-2P Applications
- Corporate or Educational Presentations
- Financial (Remote Servers/User Control)
- Call Centers
- Industrial (Long-Range Workstation Isolation)
- Information Terminals/Kiosks
- Airport Installations (Air Traffic Control/Passenger Information)
- KVM Extension where Exceptional Quality of Signal is Crucial
- Medical(Remote Operation Away from Sensitive/Magnetic Equipment)
- Recording(for large Studios where Editing/Mixing Stations are Compact and/or Require Complete Silence)
Smart-AVI SFX-2P Specifications:
| Mechanical | |
| Width | 17 in. |
| Height | 1.7 in. |
| Depth | 7 in. |
| Weight | 8 lbs. |
| Environment | |
| Operating Temperature | 0-55 °C (32-131°F) |
| Storage Temperature | -20 - 85 °C (-4 - 185 °F) |
| Humidity | Up to 95% |
| Video | |
| Resolution | Up to 1920 x 1200 @ 60 Hz |
| Format | DVI-D Single Line |
| Maximum Pixel Clock | 165 MHz |
| Input/Output Interface | 2 x DVI-D 29-pin |
| DDC | 5 volts p-p(TTL) |
| Input Equalization | Automatic |
| Input Cable Length | Up to 20 ft. |
| Output Cable Length | Up to 20 ft. |
| Audio | |
| Signal Type | DB9 |
| Bandwidth | 15MHz |
| Impedance | 10K Ohm |
| Connector | 3.5mm Stereo Mini |
| USB | |
| Signal Type | EHCI (USB 2.0) and OHCI/UHCI (USB 1.1) |
| Input Interface (TX) | 1 x USB Type B |
| Output Interface (RX) | 4 x USB Type A |
| RS232 | |
| Input/Output Interface (TX/RX) | DB9 Female |
| Speed | Up to 115 Kbps |
| Fiber Type | Duplex, multi mode |
| Connector Type | Duplex LC |
| Wavelength | 1210 nm/1550 nm (Dual wavelength) |
| Data Rate | 2x 2.5 Gbps (2.5 Gbps per wavelength) |
| Transmission Power | -5 dB Min. |
| Receiver Sensitivity | -21 dB Max. |
| Distance | 500 m Max. |
| Other Interfaces | |
| DDC Signal | 5 Volts, TTL |
| TDMS Signal | 1.2 Volts, TTL |
| Power | Internal 100-240 VAC/5VDC2A, 10 W |
