SmartAVI UXGA/Audio Point to Point CAT5 Extenders

SLX-100S

$325.00

Discontinued
Recommended replacement: SmartAVI XTPRO
Alternative options: Contact Us

The SmartAVI SLX-100 enhances any presentation from commercial products to corporate financial data. It can be used in show rooms, board rooms, trade shows and window displays.  Data such as news, stock prices, sports results, and flight information can be broadcast in real time to various monitors and/or speakers.  The SLX-100 can also be used in educational presentations to multiple locations, in schools and in other training facilities.

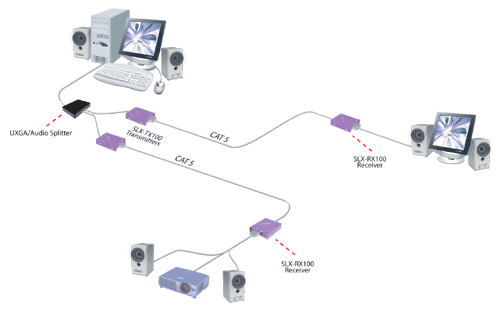

SLX100 Diagram



SmartAVI SLX-100 Features and Benefits:

  • Uses easy to install CAT5
  • Output reaches up to 1,000 feet
  • Supports high resolution clear video up to 1600x1200
  • 300 MHz Bandwidth
  • Sends high-resolution UXGA, stereo audio and power signals over single CAT5
  • Compatible with VGA, XGA, Sun, MAC and SGI signals
  • Sync Format / Polarity Preservation
  • Compatible with Line Level Stereo Audio Signals
  • High ground loop immunity
  • Built-in lightning, power surge and transient protection
  • Remote Units come with Buffered Outputs
  • Designated trimmer in the remote unit to compensate for cable length
  • Metal Case Enclosure
  • Optional power supply for remote unit

    Video
    Bandwidth150MHz
    Analog signal level1Volt
    Impedance75 ohms
    ConnectorHigh density HD15
    FormatVGA/SVGA/XGA/UXGA/RGBHV/RGsB
    SyncTTL Horizontal Sync Range: 15 to130
    KHz Vertical Sync Range:30to120 Hz
    Audio
    Bandwidth20KHz
    Signal level0dB
    Impedance10K ohms
    Connector3.5mm jack socket
    System Cable
    TypeCat5 UTP EIA 568A
    ConnectorRJ45
    Power
    Requirements24V DC @500mA
    Connector 5 x 2.1mm DC jack
