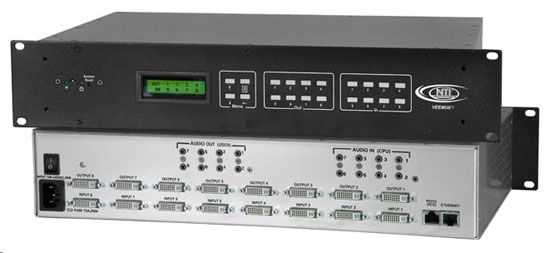

NTI 32x32 DVI Video Matrix Switch with Internal Power Supplies

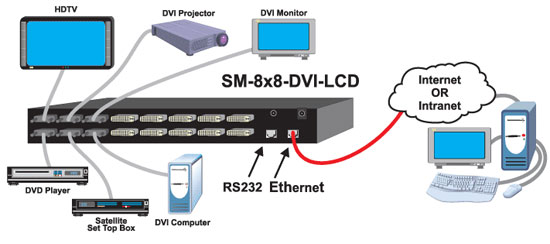

The VEEMUX¨ DVI Video Matrix Switch routes video from 32 single link digital DVI video sources (computers, DVD players, satellite receivers, etc.) to 32 displays (LCD monitors, Plasma screens, DLP HDTVs, projectors, etc.) and stereo audio speakers.

• Configure and control the switch through Ethernet, serial port, front panel buttons, or IR remote.
• Supports DVI-D interface for crisp and clear video quality on flat panel displays.
• Available with optional stereo audio.
• Supports HDTV resolutions up to 1080p and computer resolutions up to 1920x1200 (WUXGA).
• Passes HDMI audio and video signal through DVI-I port.
  • Transmit audio and video over a single cable with the DVI-HD-xx-MM male DVI-D to male HDMI cable.
• Meets the electrostatic discharge (ESD) immunity requirements of IEC/EN 61000-4-2.
• Each output provides one video signal and one stereo audio signal .
• Each input can be independently connected to any or all outputs.
  • HDCP is supported when connecting any one input to any one output (4x4 and 8x8 models only).
  • HDCP is not supported when connecting one input to multiple outputs.
• EDID learning for the support of any DVI display device.
• Built-in default EDID configuration tables for both PC and MAC.
  • Dual default EDID configuration tables: high resolution without audio and TV resolution with audio.
• Optional 32x32 DVI Matrix Switch with internal 5V power supplies drives all connected ST-2FODVI-LC extenders on the output side.
  • Connect up to 32 ST-2FODVI-LC extenders to the matrix switch to extend a DVI signal up to 4,920 feet away.
  • Local extender unit is powered by the matrix switch - no power supply required

NTI SM-32x32-DVI-LCD-5V16A Specifications
