9-Port Full HD Multiviewer to a Single Monitor
SM-HDMV-9XS
Save $2,649.13

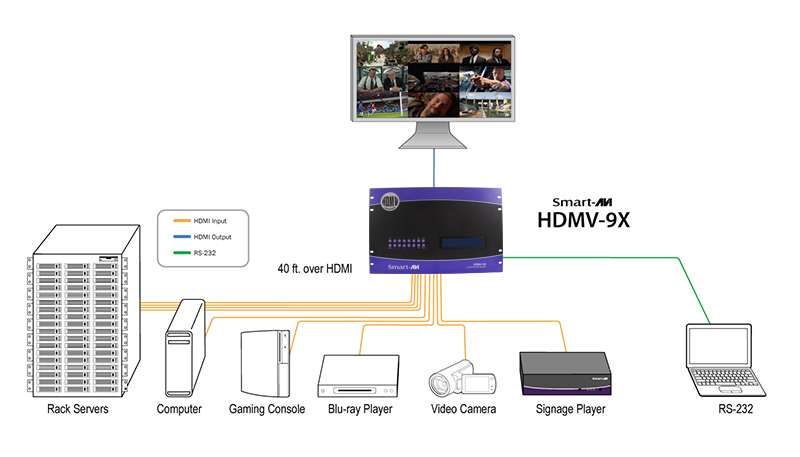

The HDMV-9X is an HD Multiviewer that allows users to view up to nine different HD digital video sources on one display device simultaneously.
Connections to video sources are managed via HDMI, with advanced viewing options such as dual-mode, quad-mode, full-mode and 9-mode. This device enables user friendly management of multiple video sources by accessing them from a single workstation and one display.
- View up to nine sources on a single monitor
- On-Screen Display (OSD) makes setup and switching easy
- Display each computer with crisp high-resolution video
- Supports 1080p HDMI output (1920 x 1080)
- Supports DVI-D with an HDMI to DVI-D adaptor
- Delivers uncompressed digital video with zero signal loss
- HDCP and HDMI 1.4 compliant
- Supports EDID for total control of compliant displays
- Change views with front panel switching and RS-232, with optional Ethernet control
- Quad-mode splits the screen to show four sources on one screen
- Dual-mode splits the screen to show two sources on one screen
- Full-mode displays one source on the entire screen
- 9-mode displays one all nine inputs on one screen
| Mechanical | |
| Width | 17.5 in (444.5 mm.) |
| Height | 12 in. (304.8 mm.) |
| Depth | 12 in. (304.8 mm.) |
| Weight | 22 lbs (9.98 kg.) |
| Video | |
| Video Bandwidth | Single-link 340MHz [10.2Gbps] |
| Resolution HDTV | 480i,480p,720i,720p,1080i,1080p |
| PC Resolution | 800 x 600 up to 1920 x 1200 |
| Input Video Signal | 1.2 volts |
| Input DDC Signal | 5 volts |
| Single Link Range | 1080p |
| Format | HDMI 1.4 |
| DVI Compliance | Single-link DVI-D 2.0 (with adaptor) |
| HDCP Compliance | 1.0/2.0 |
| Input Interface | (9) HDMI |
| Output Interface | HDMI |
| Control | |
| Front Panel | Tact Switches |
| Display | 4x40 LCD |
| Rs-232 | DB9 (female) |
| Power | |
| Requirements | Internal 100-240 VAC |
| Approvals | UL, CE, CSA, CEC, RoHS |
UPC 813280019620
EAN 0813280019620
