SmartAVI Composite Video/Audio/IR over CAT5 64x16 Matrix Switch
SNV64X16S
The SmartAVI SmartNet-V SNV64X16 is a Composite Video/Audio/IR over CAT5 64x16 matrix video switch with RS422 control. The SmartAVI SmartNet-V series of products provide a unique combination of high quality video and stereo audio matrix, remote infrared control with pass-through and signal distribution via CAT5 cable. The SNV64X16 video switch comes with a small discrete receiver unit providing a high quality signal conversion from the CAT5 cable to the television, computer or other display device.
The SNV64X16 allows the extension of infrared control signals via a single category 5 twisted pair cable. Using a unique method of transparent data transfer, the system allows a device (e.g. set-top box) to be situated up to 1000ft (300m) from the controller (e.g. television). Fully compliant with standard modulated IR and the latest IRDA, the extender will provide a transparent path for all protocols and data transfers.
This 64x16 video switch contains a high quality routing matrix for composite video and stereo audio. Gold RCA jacks sockets on the rear of the unit connect the input signals to the matrix. Color coded jacks are used for ease of identification. Both audio and video inputs are high impedance to allow for looping inputs. This enables multiple units to be cascaded together increasing the number of users to the system. Each model in the series has looping inputs giving a convenient method of upgrading the system on site. An integral on screen display (OSD) for each output keeps the user informed of channel identification and system configuration.
Note: Each user requires a receiver unit complete with IR 'eye' and handset.

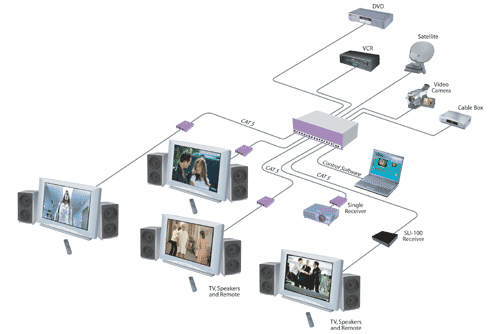

SmartAVI SmartNetV Video Switch Diagram
SmartAVI SNV64X16 Features:
- TV distribution via CAT5 structured cabling with full interactivity
- High quality video and stereo audio routing
- Signal distribution over CAT5 structured cabling
- Full interactivity via infrared control
- Fully compatible with all standards of modulated IR and IRDA
- Automatic cable compensation
- On-screen display
- Distributes signals over 300m
- Expandable on-site
- Remote powering of receiver
SmartAVI SNV64X16 Package Includes:
- SNV64X16 video switch
- SRS422 RS232 adapter
- Smart CONTROL software (SM-CSW)
SmartAVI SNV64X16 Specifications:
| Mechanical | |
| Height | 5.2 in. (133 mm.) |
| Width | 19 in. (482 mm.) |
| Depth | 17 in. (450 mm.) |
| Weight | 22 lbs. (10 kg.) |
| Power | |
| Voltage | 90-230V |
| Connector | IEC |
| Fuse Rating | 1A A/S |
| Frequency | 50/60 Hz |
| Cat 5 Signals | |
| Pair 1 | Video balanced 1 V pk-pk |
| Pair 2 | Audio L balanced 0dB |
| Pair 3 | Audio R balanced 0dB |
| Pair 4 | 12V DC power + IR balanced signals |
| Video | |
| Bandwidth | 15MHz |
| Input Signal Level | 1Volt pk-pk into 75R |
| Output Impedance | 100 Ohms |
| Input Impedance | 100k Ohms |
| Connector | RCA jack socket |
| Format | PAL/NTSC/SECAM |
| Audio | |
| Bandwidth | 20KHz |
| Signal level | 0dB |
| Output Impedance | 100 Ohms |
| Input Impedance | 10K Ohms |
| Input Connector | RCA jack socket |
| Looping Connector | Subminiature dB25 socket |
| IR Control | |
| Type | Open collector to 12V |
| Multi-output connector | Subminiature dB37 socket |
| Multi-input connector | Subminiature dB37 plug |
