Avocent 8 Port Model, 20 AMP, 208 VAC, Vertical 0U with NEMA 6-15

The Avocent (SPC820V2-001) 8-port  power control devices from Avocent provide you with a field-proven method to securely monitor and manage power to your business-critical servers and other data center network devices.

Avocent (SPC820V2-001) 8-port  power control device Features and Benefits

• The DSView 3 management software interface lets you easily associate server names with actual power outlet ports on the SPC power control device. DSView 3 software also allows grouping of dual-server power supplies as well as separating the power supplies on different power sources. This gives you true redundancy and control of dual-powered servers. Note: DSView 3 software is sold separately.
• Intelligent Power Management. Individual, addressable power outlets let you remotely reboot devices from any location in the data center or across the globe
• Integrated Power Management. Access to SPC power control device from DSView 3 software provides built-in support for servers with multiple power supplies and reduces the possibilities of inadvertently switching off the wrong server / target device
• Higher Amperage. The SPC 208V @ 30 Amp version doubles the power load delivered to the rack without increasing electrical infrastructure
• Ease of Use. Available in horizontal and vertical mountable 8 outlet models. (Also available in 4 and 16-outlet models, with configurable port grouping and naming, multi-port commands and enhanced administration)
• On / Off Power Indicators. DSView 3 software lets you easily view the SPC devices power outlet on / off status without entering the server room / data center
• Power-up Sequencing. Avoids branch circuit overload due to inrush current on powering-up the SPC appliance
• Naming Associations. Users can create an association between a server name and specific SPC outlet port(s)
• Redundant Power Supply Configurations. Single connect and click power control of dual / multiple target devices that are powered from independent branch circuits / power sources
• Power Monitoring. Dynamically measures and reports total input current load and indicates on / off state for every port
• Security. Port specific and command specific access control
• Energy Efficient. Power-on sequencing eliminates inrush current overload, which lets you maximize the number of devices on a single circuit
• Click and Connect Access. When used with the Avocent DSView 3 software interface, the SPC device lets you access power to virtually any connected data center device
• Local and Remote Power Load Measurement. Lets you hot plug additional SPC power control devices without the risk of overloading the branch circuit

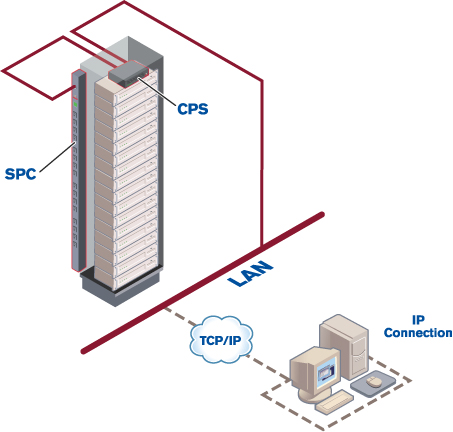

Avocent (SPC820V2-001) 8-port  power control device Function Diagram

Avocent (SPC820V2-001) 8-port  power control device Specifications:
