NTI HDMI Extender via One CAT5/6/7 up to 200 feet
ST-C5HDMI-150
The NTI XTENDEX ST-C5HDMI-150 HDMI Extender transmits digital video and audio signals up to 200 feet from an HDMI source. The ST-C5HDMI-150 video extender consists of a local unit that connects to an HDMI source (Blu-Ray player, satellite receiver, etc.), and a remote unit that connects to an HDMI display. The local and remote units are interconnected via one CAT6/7 solid cable.
Optional daisy-chain receivers allow you to extend one video source to multiple displays and to reach longer distances. The daisy-chain receivers are available in one-output and three-output options.
NTI ST-C5HDMI-150 Features and Benefits:
- Transmits an uncompressed HDMI signal over one CAT6/7 cable.
- Supports HDTV resolutions up to 1080p and computer resolutions up to 1920x1200.
- Compliant with HDMI 1.2 and HDCP 1.1 standards.
- Supports the DDC2B protocol.
- Only one power supply is necessary to power both the local and remote units.

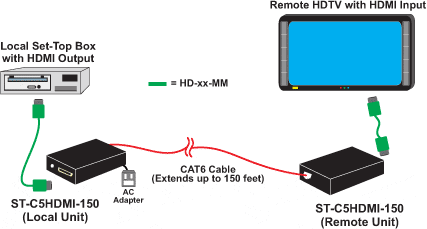

NTI HDMI Extender via One CAT6 Diagram
(ST-C5HDMI-150 depicted here)
NTI ST-C5HDMI-150 Specifications:
| Mechanical | |
| Width | 2.5 in. |
| Height | 0.9 in. |
| Depth | 2.8 in. |
| Local Unit | |
| Connectors | 1 x HDMI; 1 x RJ45 for sending video/audio; |
| Remote Unit | |
| Connectors | 1 x HDMI port; 1 x RJ45 for receiving video/audio; |
| Resolution | HDTV 1080p; Computer 1920 x 1200 (WUXGA) |
| Regulatory Approvals | CE, FCC, RoHS |
Question: Does CAT6 need to be solid core?
Answer: Thank you for your inquiry. For the best performance, solid core cable is recommended.
Here is what the manufacturer has to say:
CAT6 UTP solid 550 MHz or better cable with TIA/EIA-568B wiring terminated with standard RJ45 connectors is recommended for 1080p applications (not included). Extension distances will vary with the resolution and quality of the cable used.
Answer: Thank you for your inquiry. For the best performance, solid core cable is recommended.
Here is what the manufacturer has to say:
CAT6 UTP solid 550 MHz or better cable with TIA/EIA-568B wiring terminated with standard RJ45 connectors is recommended for 1080p applications (not included). Extension distances will vary with the resolution and quality of the cable used.
