NTI VGA/USB + Audio KVM Extender Kit via CAT5 (Transmitter & Remote)
ST-C5USBVA-300
Save $48.68
The XTENDEX¨ ST-C5USBVA-300 USB/VGA + Audio KVM extender extends a USB keyboard/mouse, stereo audio and VGA display up to 300 feet via CAT5/5e/6/6a cable. Each ST-C5USBVA-300 consists of a local unit that connects to a computer and provides local keyboard, monitor, stereo audio and mouse connections, and a remote unit that connects to a keyboard, monitor, externaly powered speakers and mouse. The local and remote units are interconnected via CAT5/5e/6/6a cable.
- Supports local and remote access.
- Compatible with all video resolutions up to WUXGA (dependant upon CAT5/5e/6/6a extension length).
- Supports resolutions to 1920x1440.
- Stereo audio can be heard both locally and remotely.
- Line level output; supports multimedia speakers.
- Optional local unit supporting two remote users available (ST-2C5USBVA-L-300) - extend two remote units up to 300 feet. (91 meters)
* Local access not available on units supporting two remote users. - High quality, rugged steel construction with durable powder coat finish.
- Supports most USB keyboards and mice, including some wireless models.
* Supports Logitech M100/M-BZ96C/M310 and Dell 0XN967/K251D/XN966/0Y357C mice. - Keyboard and mouse are hot-pluggable.
- Keep-alive keyboard/mouse emulation for flawless operation.
- Multiplatform support: Windows 2000/XP/Vista/7, Windows Server 2000/2003/2008, Solaris, Linux, FreeBSD and MAC OS 9/10.
- Built-in surge protection.
- Allows users to back-rack broadcast quality servers without impact to post-production operations.

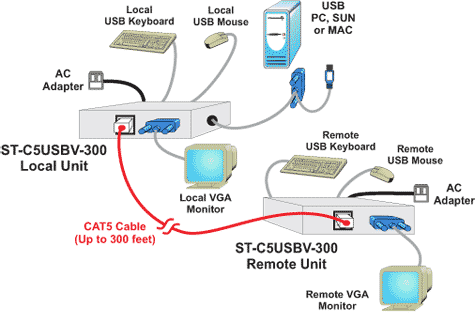

NTI 300' VGA/USB KVM Extender Application Diagram
(Image shows ST-C5USBV-300 Version without audio)
ST-C5USBVA-300 Specifications:
| Mechanical | |
| Width | 3.5 in. (8.9 cm.) |
| Height | 1.2 in. (3.0 cm.) |
| Depth | 3.1 in. (7.9 cm.) |
| Video | |
| Maximum Resolution w/ CAT5/5e/6 UTP (refresh frequency 60Hz) | 1024 x 768 @ 60Hz- up to 300 feet 1600 x 1200 @ 60Hz- up to 150 feet 1920 x 1440 @ 60 Hz- up to 100 feet |
| Maximum Resolution w/ CAT5/5e STP (refresh frequency 60Hz) | 1024 x 768 @ 60Hz- up to 300 feet 1280 x 1024 @ 60Hz- up to 150 feet 1600 x 1200 @ 60Hz- up to 100 feet |
| Video Compatibility | WUXGA,UXGA,SXGA, XGA, SVGA, VGA |
| Video Quality | Variable for up to 300 feet of CAT5 cable |
| Video Coupling | DC |
| Video Connectors | HD15 male to CPU HD15 female to local and remote monitors |
| Sync Types Supported | Separate and composite TTL Level |
| Video Signal Type | Analog RGBHV,RGBS |
| Maximum Input/Output Levels | 1.45Vp-p (no offset) |
| Input / Output Impedance | 75 Ohms |
| Input Horizontal Frequency Range | 15kHz to 130 kHz |
| Input Vertical Frequency Range | 30 Hz to 150 Hz |
| Audio | |
| Signal Type | Line Level, stereo, unbalanced |
| Connectors Local Unit | 3.5mm Stereo Plug, Pigtail, 3.5mm Stereo Jack, PCB |
| Connectors RemoteUnit | 3.5mm Stereo Jack, PCB |
| Maximum Input Level | 2.82 Vp-p (unbalanced) |
| Input Impedance | 10 kohms |
| Maximum Output Level | 3.1 Vp-p |
| Frequency Response | 20 Hz to 20 kHz, + 1dB |
| S/N | >76dB |
| Stereo Channel Separation | >70dB @ 1 kHz |
| Keyboard/Mouse Connectors | USB Type A female- to local and remote keyboard/mouse USB Type A male- to CPU |
| Interconnect Cable | CAT5/5e Solid UTP/STP EIA/TIA 568B wiring w/ male RJ45 connectors - OR- CAT6 Solid UTP EIA/TIA 568B wiring w/ male RJ45 connectors |
| Remote and Local Unit Power | 120V or 240V (50 or 60Hz) 9VDC/1.0A via AC Adapters |
| Environmental | |
| Operating temperature | 32 to 100°F (0 to 38°C) |
| Storage temperature | -20 to 140°F (-30 to 60°C) |
| Operating and Storage Relative Humidity | 17 to 90% non-condensing |
| Regulatory Approval | CE RoHS |
| Warranty | Two years |
