NTI ST-C5VRS-1000S Hi-Res VGA Video + RS232 Extender via CAT5: Extend to 1,000 Feet

ST-C5VRS-1000S

$705.00$648.28
Save $56.72
FREE Shipping on orders over $100

The XTENDEX VGA Extender transmits VGA video up to 1,000 feet away from a computer using CAT5/5e/6 cable. Each video extender consists of a local unit that connects to a computer and also supplies video to a local monitor, and a remote unit that connects to a monitor.

  • Industry-leading ultra high resolutions up to 2048x1536.
  • High quality, rugged steel construction with durable powder coat finish.
  • Automatically adjust video quality and color skew for crystal clear video with longer cables.
  • Available options: two-way audio (support for speakers and microphone), RS232, two-way audio + RS232.
  • DDC2B support for local or remote monitor (user selectable).
  • Built-in surge protection.

RS232

  • Supports TXD, RXD, DTR, DSR, DCD, CTS and RTS.
  • Baud rate up to 57.6K.
  • Support for a touch screen monitor.

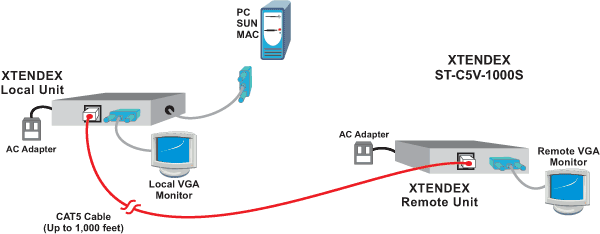

ST-C5V-1000Sseriesdiagram

Specifications:

Mechanical
Width 5.05 in. (128 mm.)
Height 1.09  in. (28 mm.)
Depth 3.08  in. (78 mm.)
Environmental
Operating Temperature 32 to 122°F (0 to 50°C)
Storage Temperature -20 - 140°F (-30 to 60°C)
Operating Humidity 17 to 90% non-condensing RH
Power Consumption 110V-220VAC @ 50/60Hz-5VDC/2.0A--10W
Approvals CE, RoHS
