NTI HDMI Extender HDTV 1080p via Fiber Optic Cable
ST-FOHD-LC
The NTI ST-FOHD-LC HDMI Extender via Fiber Optic Cable locates an HDMI display up to 5,000 feet (1,524 meters) away from a video source using fiber optic cable. The ST-FOHD-LC HDMI extender consists of a transmitter that connects to a video source and a receiver that connects to a display.
NTI ST-FOHD-LC Features and Benefits:
- Transmits an uncompressed HDMI signal over one CAT6/7 cable.
- Supports HDTV resolutions up to 1080p and computer resolutions up to 1920x1200.
- Compliant with HDMI 1.2 and HDCP 1.1 standards.
- Supports the DDC2B protocol.
- Only one power supply is necessary to power both the local and remote units.

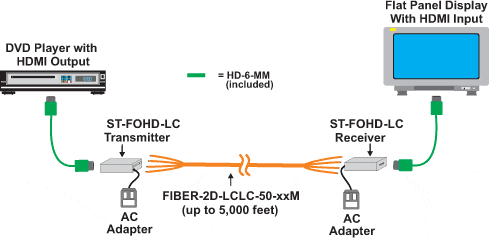

NTI HDMI Extender via Fiber Optic Cable Diagram
(ST-FOHD-LC depicted here)
NTI ST-FOHD-LC Specifications:
| Mechanical | |
| Width | 5.4 in. |
| Height | 1.0 in. |
| Depth | 4.7 in. |
| Weight | 1.1 lbs. |
| Power | |
| AC Adapter | 100 to 240 VAC @ 50/60Hz |
| Environmental | |
| Operating Temperature | 14 to 122°F (-10 to 50°C) |
| Storage Temperature | -22 to 140°F (-30 to 60°C) |
| Local Unit | |
| Connectors | 1 x HDMI Type A; 2 x Duplex LC |
| Remote Unit | |
| Connectors | 1 x HDMI Type A; 2 x Duplex LC |
| Resolution | HDTV 1080p; Computer 1920 x 1200 (WUXGA) |
| Data Rate | 2.25 Gbps |
| Optical Source | 850 mm VCSEL |
| Regulatory Approvals | CE, FCC, RoHS |
