Raritan Switchman 2-Port USB Combo
SW2-USB-COMBO
The Raritan SwitchMan SW2-USB-COMBO allows control of 2 USB or PS/2 computers from a single USB keyboard, video and USB mouse (KVM) console. The SW2-USB-COMBO USB switch has a built-in USB 2.0 hub which allows multiple computers to share USB supported devices such as scanners, digital cameras and printers. Its audio capability lets you share a single microphone and stereo speakers regardless of which computer you connect to.
The small footprint of the Raritan SW2-USB-COMBO saves valuable desk space and color-coded connectors and premium cables make installation easy. There is no complicated setup or software to load, just plug in a standard keyboard, mouse and VGA monitor and you are up and running. SwitchMan USB-COMBO supports both PCs and/or Apple Macs, with connectivity via Raritan's premium KVM cables for the highest video and audio quality.
Note: The SW2-USB-COMBO supports Macintosh computers but will not support Sun computers.
The accessories included with the SW2-USB-COMBO as pictured below are:
- (1) Vertical Mount Base
- (1) Auto Switch Power Adapter 110-240 volts AC
- (2) KVM Cables (6 ft/1.8 m), (1) USB 3 ft Cable

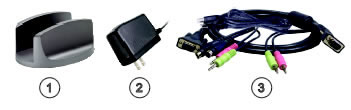

Raritan SwitchMan SW2-USB-COMBO Included Accessories
Raritan SW2-USB-COMBO Features & Benefits:
- Easy switching between computers with a push button or hot keys.
- Hot Swap feature allows adding or changing devices without the need to power down your PC.
- Built-in microphone and speaker jacks for high quality multi-media.
- Hot key and auto-scan enables health monitoring of connected computers.
- LED displays for easy status monitoring.
- Works with Windows 98/2000/ME/XP, Mac and Linux
- Works with USB supported peripheral devices and keyboard/mouse with USB connectors.
- Supports VGA, SVGA and Multisync monitors with resolution up to 1920 x 1440 @ 75Hz
Raritan SW2-USB-COMBO Specifications:
| Mechanical | |
| Height | 1.73 in. (44 mm.) |
| Width | 7.24 in. (184 mm.) |
| Depth | 4.84 in. (123 mm.) |
| Weight | 1.58 lbs. (0.72 kg.) |
| Environmental | |
| Operating Temperature | 0 to 40 Degrees C (32 to 104 Degrees F) |
| Storage Temperature | -20 to 60 Degrees C (-4 to 140 Degrees F) |
| Humidity | 0 to 80% RH non-condensing |
| Power | |
| DC Power Supply | 5V/2.5A |
| User Connection Ports | |
| VGA Monitor | HD 15 F |
| USB Keyboard | USB Type A |
| USB Mouse | USB Type A |
| Microphone | Phone Jack, 3.5mm (pink) |
| Speaker | Phone Jack, 3.5mm (green) |
| Flash Upgrade | Mini Din 8 pin (F); Cable: Mini Din 8 (M) to DB9 (F) |
| PC Connection Ports | |
| VGA Monitor | Mini HD15 F |
| USB (kb + ms) | USB Type B |
| PS/2 Keyboard | Mini DIN 6 Pin (M) |
| PS/2 Mouse | Mini DIN 6 Pin (M) |
| Monitor | HD15 (F) |
| Speaker | Audio Jack, 3.5mm (green) |
| Microphone | Audio Jack, 3.5mm (pink) |
| Agency Approvals | FCC class B Part 15, CE class B and VCCI certification |
