All-in-One HDMI/VGA Smart Wall Plate Extender with Integrated Scaler and Converter
SWP-T10
Save $110.17

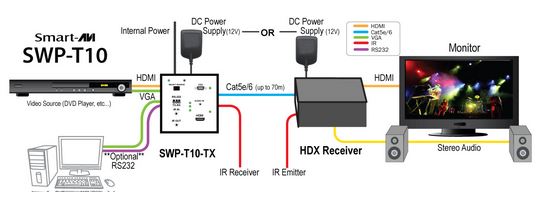

The Smart Wall Plate T10, or SWP-T10, is SmartAVI's most comprehensive all-in-one wall plate extender. The SWP-T10 features HDMI, VGA, stereo audio, and IR extension with CAT5e/6 HDBaseT enhancements at lengths up to 70 meters (230 ft).
The T10's automatic scaler and converter bumps picture resolution up to 1080p (1920 x 1080 @ 60Hz), and seamless automatic input recognition optimizes signals. Conveniently powered by either the transmitting or receiving unit, the SWP-T10 blends SmartAVI's signature ease-of-use with quality, highly-adaptable configurations right for any set-up.
- Supports POE: powered by either SWP-T10-TX or compatible HDX receiver units
- HDMI 1.4 and DVI compliant (with adaptor)
- Automatic, integrated resolution scaler up to 1080p (1920 x 1080 @ 60Hz)
- Extends CAT5e/6 signals up to 70m
- CEC pass-through
- LED status indicators
- Automatic & manual input recognition and selection
- Extends IR remote control
- **Optional RS-232 support**
| Input/Output | |
| Compliance | HDMI 1.4 and HDCP 1.2 |
| Resolution | Up to 1080p |
| Max Data Rate | 6.75 Gbps |
| Input Interface | (1) HDMI Type-A; (1) VGA; (1) Stereo Audio In; (1) IR In |
| Output Interface | (1) RJ45(HDBaseT); (1) IR Out |
| IR | |
| Signal Type | 38 KHz |
| Interface | 3.5mm Female Jack |
| Control | |
| IR | Infrared Remote Control (In/Out) |
| Front Panel | SOURCE button (select/switch) |
| **RS-232 | **(Optional) RS-232 port, remote control with PC |
| Other | |
| Power | PS12V-2A |
| Dimensions | 4.6"W x 4.6"H x 1.45"D |
| Weight | 0.75 lbs. |
| Approvals | UL, CE, ROHS Compliant |
| Operating Temperature | 32-104°F (0-40°C |
| Humidity | Up to 80% RH |
