Video/Audio/PS2/RS-232 CAT5 Transmitter
SX-TX500S

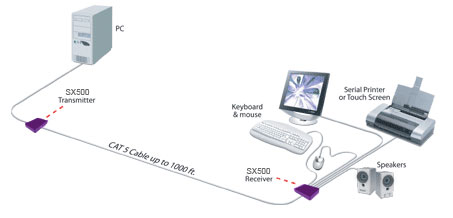

The SX-500 Transmitter device is designed to allow access to the PC from a keyboard, mouse, and monitor at a remote location up to 1000 ft. away.
Features
- Provides remote access of the PC with keyboard, mouse and monitor
- Uses single CAT-5 UTP cable to reduce installation costs
- Extends signal to a maximum distance of 1,000 feet
- Supports all PC/AT and PS/2 keyboards with full emulation
- Caps Lock, Num Lock, and Scroll Lock are automatically saved and restored
- Supports full emulation and conversion on all PC/AT and PS/2 mice
- Recognizes and supports a mix of PC/AT and PS/2 mice
- Compatible with Windows, NT, OS/2, UNIX, Linux, and other operating systems
- Supports computer monitors with resolution of up to 1920x1200
- Offers adjustable cable compensation
- Compact metal enclosure
- Extends signal to a maximum of 1,000 ft
- Supports stereo audio
- Supports RS232 from 300bps up to 19,200 bps
- Compensation for each color
SmartAVI SX-500 Transmitter Specifications
| Mechanical | |
| Height | 1.5 in. (3.81 cm) |
| Width | 6.25 in. (15.87 cm.) |
| Depth | 3.75 in. (9.52 cm.) |
| Bandwidth | 15KHz |
| Signal Level | 0db unbalanced |
| Input Impedance | 10K ohms |
| Output Impedance | 100 ohms |
| System Connection | RJ45 Connected to CAT5 UTP |
| RS232 | Data up to 57,600 |
| Resolution | 1920x1200 up to 300 ft, 1600x122 up to 450 fr, 1280x1024 up to 650 ft, 1024x768 up to 1000 ft |
| System Connection | RJ45 connected to CAT5 UTP |
| Power | 240V/ 110V 12VDC1.5A |
UPC 813280023610
EAN 0813280023610
