Cyclades-TS2000 32-port console server

Please note, the Cyclades TES0080 is discontinued. For replacement or upgrade options, please contact your KVM Switches Online sales representative at 1-877-586-6654.

Cyclades TS2000 Serial Server (TES0080)
The Cyclades-TS family of Console Servers provides you secure and reliable management of your network and servers from anywhere in the world. Available in many different port count models in a 1U form factor, the Cyclades TS2000 (TES0080).

Security features such as SSH v2, RADIUS authentication, IP filtering, and user access lists per port allow data center managers and system administrators to remotely manage the network and servers with greater control and peace of mind.

The Cyclades TS2000 (TES0080) console management features such as data buffering, direct access methods to the serial ports (such as TCP port and server name) and event notification improve monitoring capabilities, allowing faster problem solving actions and higher network uptime.

Instead of using proprietary software technologies, the Cyclades TS2000 (TES0080) leverages on Open Source software (Linux), giving users the freedom to customize its operation, modifying or adding features as needed.

The Cyclades-TS family of Console Servers decreases network maintenance costs while increasing efficiency and productivity. That's why the Cyclades TS2000 (TES0080) is the right choice for secure in-band and out-of-band data center management.

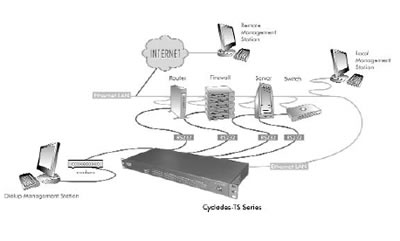

Cyclades TS-Series Function Diagram (TES0080)

Cyclades TS2000 (TES0080) Applications:

• Console Management

• Server and Network Management

• Terminal Server

• Industrial/Commercial Automation

• Ethernet-attached Serial Board Replacement

• Benefits

• Secure In-band and Out-of-band Network Management

• Rack space savings (1U form factor)

• Improved Network Monitoring

• Rock-solid stability (Linux Inside)

Cyclades TS2000 (TES0080) Features and Benefits

• Operating System: Linux

• Accessibility:  In-Band (Ethernet) and Out-of-band (Dial-up modem) support

• Security:  SSH v1 and v2; Local, RADIUS, TACACS+ and LDAP Authentication; Token-based strong authentication (SecurID); Local backup user authentication support; PAP/CHAP authentication (for dial-up lines); IP Packet and Security Filtering; User Access Lists per port; System Event Syslog

• Console Management:  Sun break-safe (Solaris Ready Certified); Break Over SSH support; Off-line data buffering - Local or Remote (NFS/Syslog); Timestamp for data buffering; Unlimited number of simultaneous sessions; Simultaneous access on the same port (port sniffing); Clustering (central access to multiple console servers); Event notification (email, pager, SNMP trap)

• Port Access: Directly by TCP port, IP address or server name; Telnet/SSH with menu; HTTP/HTTPS

• System Management: Configuration wizard for first time users; Command Line Interface (Linux Shell); Web Management Interface (HTTP/HTTPS); SNMP

• Cabling: CAT5 compatible adapters for simpler cabling (sold separately)

• Upgrades: Upgrades available on FTP site, no charge; Flash upgradeable; TFTP support for network boot

• Customization: Cyclades Development Kit (CDK) available for custom applications, no charge

• Additional Protocols Supported: DHCP for dynamic IP address assignment; PPP/SLIP for dial-up; NTP for time server synchronization; RFC2217 support for remote serial port access

Cyclades TS2000 (TES0080) Specifications
