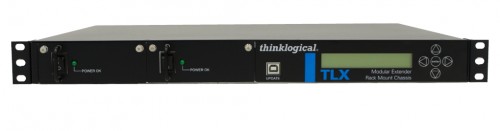

HDMI/DVI KVM Extender (Receive), 4K@60 w/ audio, RS232 and USB HID
TLX-RMM-H00D20
**Note: This is a Reciever unit only. Click here for the Transmitter, or Click here for the Extender Pair.

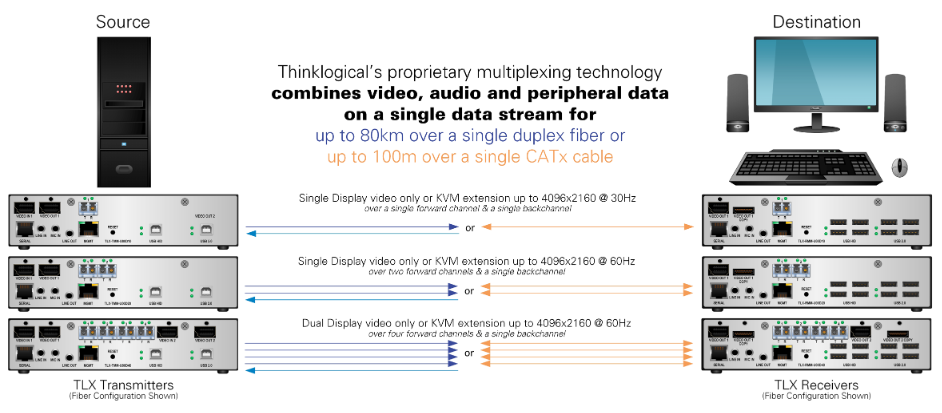

TLX extension systems deliver uncompressed, high resolution video, audio and peripheral data over fiber optic cabling. Configurable to specifically suit the requirements of most applications, the TLX extenders support up to 4K @ 60Hz video (4096x2160) with full duplex stereo audio, serial (RS- 232) and USB HID. The TLX design offers support for both HDMI 1.4 and DisplayPort 1.2 connector types in a single extender, with full support for HDCP content. Additionally, TLX extension systems support embedded audio, with the ability to de-embed audio at the receiver.
Features & Benefits
- Connector supports both HDMI 1.4 and DisplayPort 1.2 cables
- 10Gbps bandwidth per port
- Multi-mode fiber configuration
- Extension of up to 80km over fiber
- Support for a single display up to 4096x2160 @ 60Hz
- Supports HDCP content
- Local output port(s)
- Ethernet port for configuration, management and updates
- Support for embedded audio, with ability to de-embed at the receiver
- Support for unbalanced analog audio and serial RS-232
- Support for USB HID
- Modular, hot-swappable form factor for field configuration
Specifications
| Mechanical | |
| Height | 1.592 in. (40.43mm) |
| Depth | 6.366 in. (161.69mm) |
| Width | 7.406 in. (188.11mm) |
| Tolerance | ± .039 in. (1mm) |
| Extension | |
| Multi-mode Fiber Distances | Up to 33m, Type OM1 Up to 82m, Type OM2 Up to 300m, Type OM3 Up to 400m, Type OM4 |
| Environmental | |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Humidity | 5 to 95% RH, non-condensing |
| Power | |
| Supply Voltage | 100-240 VAC, 47-63Hz: Universal AC Power Supply |
| Compliance | Approvals for US, Canada and European Union |
| Warranty | One Year Standard |
