USB 2.0 Hi-Speed Panel Mount Cable, 5-Pin Motherboard IDC to USB Type-A (F/F), 1 ft.
U024-001-5P-PM
$7.72
Connects your computer's motherboard to a panel-mounted USB-A port that can be installed in a computer, booth, kiosk or podium.
Adds a Panel-Mounted USB-A Port
- Allows convenient USB access from a trade show booth, retail kiosk or lecturer's podium
- 5-pin PCB header terminates on computer's motherboard
- Supports data transfer speeds up to 480 Mbps
- Backward compatible with previous USB generations
Premium Construction for Premium Performance
- Corrosion-resistant gold-plated contacts for optimal signal transfer
- Fully molded construction with strain relief for durability and long life
- Flexible PVC jacket easy to install in tight spaces
- Double shielding with tinned copper braid, aluminum Mylar foil and twisted 28/24 AWG data/power lines
- Mounting screws included
Question: What is the spacing between screw holes?
Answer: Thank you for your inquiry,

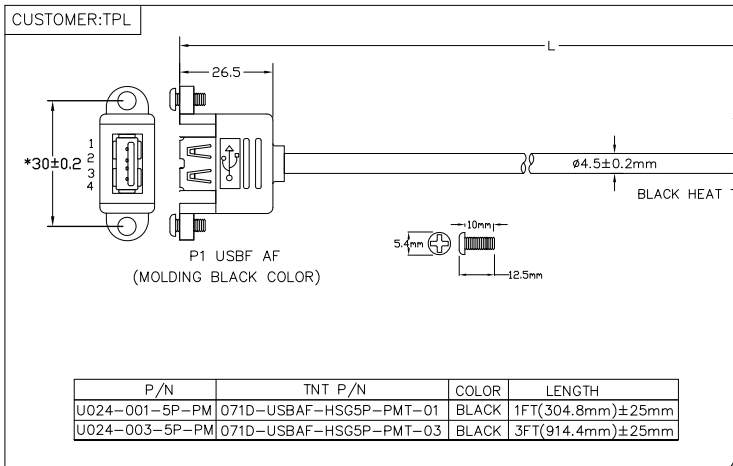

The screw holes are 30mm apart (? 0.2mm). See below for a technical diagram for the TrippLite U024-001-5P-PM (Measurements are all in mm):
Please let us know if there is anything else we can help you with!
Answer: Thank you for your inquiry,
The screw holes are 30mm apart (? 0.2mm). See below for a technical diagram for the TrippLite U024-001-5P-PM (Measurements are all in mm):
Please let us know if there is anything else we can help you with!
