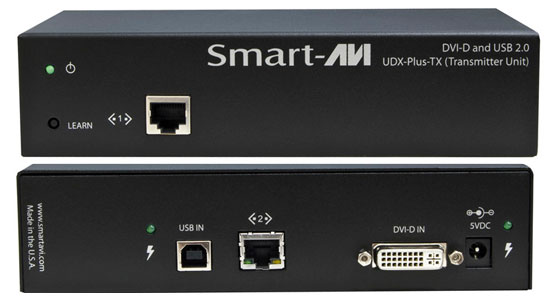

DVI-D, USB 2.0, CAT6 STP Transmitter with Reclocking
UDX-PTX
Save $143.51
The UDX-Plus Transmitter is the perfect solution for extending a DVI-D display and USB 2.0 devices to a remote location. It extends DVI-D and USB 2.0 signals to a remote location up to 250 feet away. The UDX-Plus features pixel accurate signal reclocking which regenerates the input signal into a perfectly sharp and clear output signal. It is fully plug and play with dynamic DDC learning.
Applications
- Digital Signage
- Home Networking
- Remote USB Connections
- USB Device Sharing
- Webcam
- USB Electronics Devices
- Security Systems
- KVM Extension
Features
- DDC from internal table for Mac/PC
- Dedicated switch to learn any DDC
- Supports High Resolution 1920x1200 60Hz WUXGA
- Supports Mac, PC, and Linux DVI
- Uses universal DVI Single Link connectors
- Zero pixel loss with TMDS signal correction
- Supports all USB 2.0 and 1.0 Devices Transparently
- (Disk Drives, Flash Drives, Printers, Cameras, Scanners, etc.)
- Supports 4-port USB 2.0 in remote location
- Full reclocking for the receiver regenerates digital signal producing top signal quality

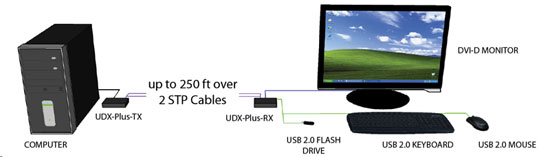

- Extends up to 250ft (275ft with high quality CAT6 STP)
SmartAVI UDX-Plus Transmitter Specifications
| Mechanical | |
| Height | 1.75 in. (4.44 cm) |
| Width | 7.25 in. (18.41 cm.) |
| Depth | 3.37 in. (8.55 cm.) |
| Video Format | DVI-D Single Line |
| Maximum Pixel Clock | 165 MHz |
| Input Interface (TX) | (1) DVI-D 29-pin female |
| Output Interface (RX) | (1) DVI-D 29-pin female |
| Resolution | Up to 1920x1200 @60Hz |
| DDC | 5 volts p-p (TTL) |
| USB Signal Type | USB 2.0 480 Mbits/s (60 MB/s) |
| USB Input Interface (TX) | (1) USB Type B (Female) |
| USB Output Interface (RX) | (4) USB Type A (female) |
| Power | External 100-240 VAC/5VDC4A @20W |
UPC 813280023696
EAN 0813280023696
