Raritan Cat5 Reach KVM Extender for CompuSwitch, MCCII, MX4
UPCEDU
The Raritan Cat5 Reach UPCEDU is a Cat5 KVM Extender used to locate a PC up to 1,000 feet from Raritan CompuSwitch, MCCII, MasterConsole MX4, to cascade CompuSwitch or MCCII.
Cat5 Reach allows you to:
- Operate a PC from wherever you want to be.
- Keep your PC in a clean, secure environment.
- Protect the PC, applications and valuable data.
- Add a local user console, in addition to the remote user console.
- Control all servers connected to a KVM switch remotely.
Cat5 Reach is easy to install and easy to use. Each Cat5 Reach model is packaged as a kit that includes a transmitter and receiver pair for use with your Enhanced Cat5 UTP cable (sold separately). Just plug a keyboard, video and mouse into the receiver and operate. Automatic Video Tuning (AVT) adjusts video quality automatically, so no manual adjustments are needed.

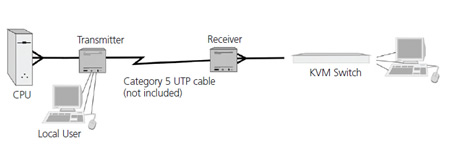

Raritan UPCEDU KVM Extender Application Diagram
NOTE: Package includes- UKVM transmitter unit, URKVMG receiver unit and (2) CCPT06 2ft. KVM cables. Use Enhanced Category 5 UTP (350 Mhz) cable (sold separately), with RJ-45 connectors. Cable must conform to EIA/TIA T568B Category 5 wiring standard.
Raritan UPCEDU Specifications:
| Mechanical | Transmitter | Receiver |
| Height | 1 in. (23 mm.) | 1 in. (23 mm.) |
| Width | 4.3 in. (108 mm.) | 4.3 in. (108 mm.) |
| Depth | 3.6 in. (91 mm.) | 3.6 in. (91 mm.) |
| Weight | 0.5 lb. (0.2 kg.) | 0.5 lb. (0.2 kg.) |
| Power | No external power required | 6V DC 1.4 amp output (included) |
| User Port | 6 pin keyboard & mouse, HD15 | 6 pin keyboard & mouse, HD15 |
| Connections | ||
| Connection to PC/Switch | DB25(F) | N/A |
| Connection to SUN | N/A | DB25(F) |
| Connection to Receiver | RJ-45 jack | N/A |
| Connection to Transmitter | N/A | RJ-45 jack |
