SmartAVI USB+UXGA Extender Link System

USB-200S

$499.00

Discontinued
Recommended replacement: SmartAVI UXPRO
Alternative options: Contact Us

The SamrtAVI USB200 extends Universal Serial Bus (USB) via a single Category 5 Unscreened Twisted Pair (UTP) cable. Using a unique method of transparent data transfer, the system allows a USB peripheral to be located up to 275ft from the CPU.

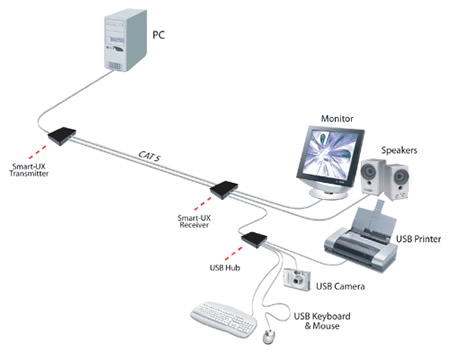

SmartAVI USB Extender Diagram
SmartAVI USB Extender Diagram

SmartAVI USB200 Features and Benefits:

  • Extends USB port up to 275 feet from the computer.
  • Extends Video XVGA and stereo audio to 275 feet from the computer.
  • Video cable compensation
  • VGA extension for up to 1280 x1024 @85Hz
  • Fully compliant with USB 1.1 Specifications
  • Supports 1.5 and 12 Mbps data rates
  • Uses one CAT-5 UTP cable for USB transmission
  • Uses one CAT-5 UTP for each XVGA/Audio signal transmission
  • External power adapter for transmitter and receiver unit
  • Rack 1U high enclosure for easy rack fit
  • Supports MAC, PC and SUN
  • Fully transparent (does not use any emulation)
  • Plug and play

    • USB200 Specifications:

    Electrical TRANSMITTER RECEIVER
    USB Data
    USB Fixed data rate 12Mbps
    USB Version compatibility 1.1
    Video Specifications Monitors VGA, SVGA, XGA, and VESA Video Signal
    Analog Signal Red, Green, Blue 0.7Vp-p/75 ohms positive
    Resolution 1600x1200
    Bandwidth 200 MHz
    Sync TTL Compatible
    Connectors USB: Type B
    Video: HD15 female
    System: RJ45
    Power: Jack 5mm x 2.1mm    		 USB: Type A
    Video: HD15 female
    System: RJ45
    Power: Jack 5mm x 2.1mm
    Power 5VDC @ 150mA;
    Connector Bus powered    		 5VDC @ 1A
    Front Panel 1 Led for Power Status1
    LED for communication status    		 1 Led for Power Status1
    LED for communication status
