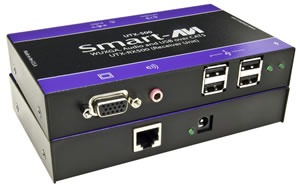

SmartAVI WUXGA+AUDIO+USB Extender Kit
UTX-500S
The SmartAVI UTX-500S extends WUXGA Video, Stereo Audio and USB 1.1 up to 300 feet over CAT5 Cable. It includes UTX-TX500(transmitter), UTXRX500(receiver), 6ft USB MM AB cable, 6ft XVGA MM Cable, and 2 PS5VDC2A.
SmartAVI UTX-500S Features:
- Plug and play, no software required
- Supports WUXGA video extension for resolutions up to 1920 x 1200
- Fully compliant with USB 1.1 specifications
- Supports 1.5 and 12 Mbps data rate
- Built-in skew compensation
- Uses a single CAT5 UTP cable
- External power adapter for transmitter and receiver unit
- Fully transparent to any type of USB 1.1 device
SmartAVI UTX-500S Application Diagram
SmartAVI UTX-500S Specifications:
| Mechanical | |
| Width | 5.5 in. (13.97 cm.) |
| Height | 1.0 in. (2.54 cm.) |
| Depth | 3.375 in. (8.57 cm.) |
| Weight | 1 lb. (0.5 kg.) |
| Video | |
| Format | RGBHV, RGsB, YUV, Y/C, CVBS |
| Resolution | Up to 1920x1200 VGA, SVGA, XGA |
| Input Interface (TX) | (1) HD-15 Female |
| Output Interface (RX) | (1) HD-15 Female |
| Audio | |
| Signal Type | Stereo unbalanced |
| Input Interface (TX) | 3.5 mm Jack Socket (Female) |
| Output Interface (RX) | 3.5 mm Jack Socket (Female) |
| USB | |
| Signal Type | USB 1.1 |
| Input Interface (TX) | (1) USB Type B (Female) |
| Output Interface (RX) | (4) USB Type A (Female) |
| Environmental | |
| Operating Temperature | 35° F to 96° F |
| Storage Temperature | -20° F to 140° F |
| Humidity | Up to 95% |
| Power | External 100-240 VAC/5VDC2A @ 10W |
UPC 813280020084
EAN 0813280020084
