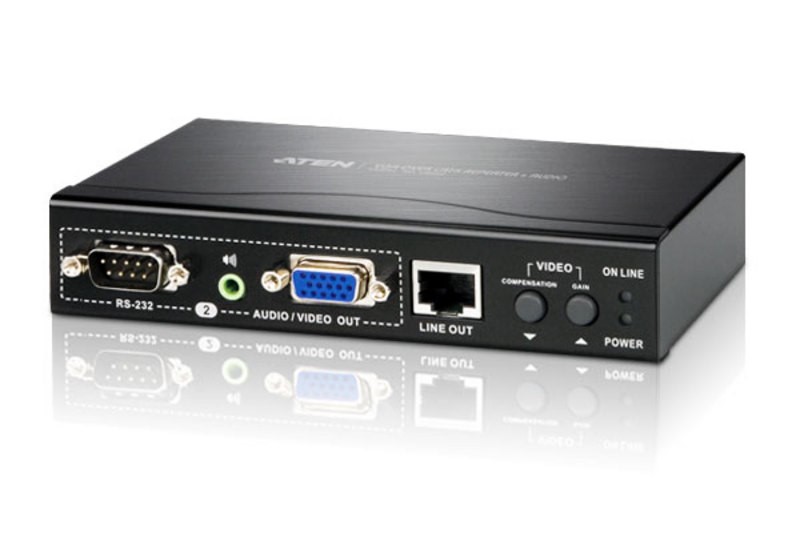

VGA/Audio/RS-232 Cat 5 Repeater w/ Dual Output (1600 x 1200@150m)
VB552

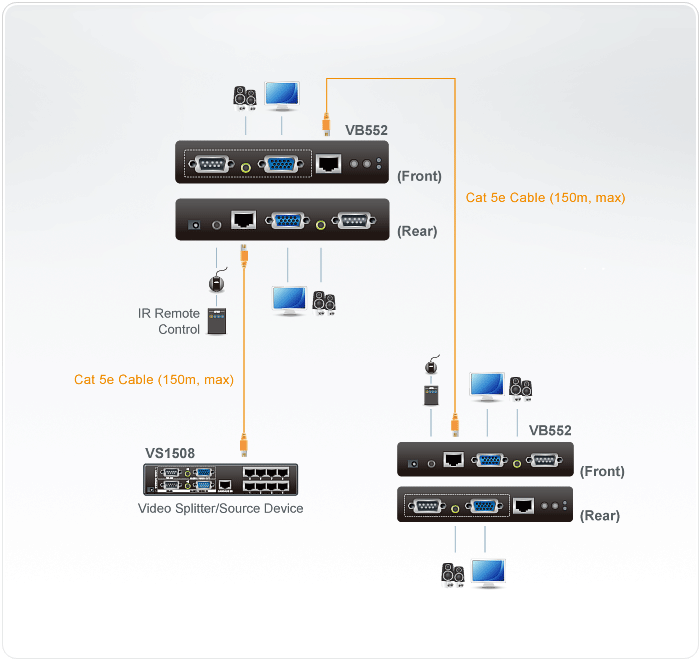

The VB552 VGA Over Cat 5 Repeater +Audio is an audio/video signal extension device which is compatible with ATEN Cat 5 Audio/Video splitters. The VB552 extends the audio/video transmission range an extra 150m over Cat 5e (or higher) cables. The use of an additional repeater means the audio/video signals can be transmitted over even longer distances, up to 450m.
Furthermore, for longer distance installations where video signals may degrade, the VB552 has adjustable video gain and compensation controls to provide the sharpest video quality possible. An IR remote control also provides picture control at the remote site. Rack-mountable, with two RS-232 channels on the unit for selection, and support for high video resolutions, the VB552 is the perfect solution to extend the range of your A/V and serial transmissions in any installation environment requiring VESA FDMI mount standards.
Product Features
- Uses Cat 5e cable to extend audio/video signal
- Extends the transmission range an extra 150m
- High-quality video - up to 1920x1200@60Hz at 30m, 1600x1200@60Hz at 150m, 1280x1024@60Hz at 200m
- Audio and serial enabled
- Two gain control modes for sharpest picture quality
- Video gain and compensation adjustable via OSD
- IR receiver for quick and easy video quality adjustment
- IR remote control for screen on/off and video adjustment at remote site
- Provide a RS-232 channel for selection*
- Follows VESA FDMI mount standard
- Supports DDC for the local monitor
- Supports VGA, SVGA, XGA, SXGA, UXGA and multisync monitors
- For use in combination with VS1504/VS1508 Audio/ Video splitter
Package Includes
- 1x VB552 VGA Over Cat 5 Repeater + Audio
- 1x Power Adapter
- 1x Infrared Remote Control Handset
- 1x Infrared Receiver
- 1x IR Receiver Holder
- 1x Mounting Kit
- 1x User Instructions
Product Specifications
| Video Output | |
| Interfaces | 2 x HDB-15 Female |
| Impedance | 75Ω |
| Max Distance | 1.8 m |
| Video | |
| Max Bandwidth | 300 MHz |
| Max Resolutions/Distance | Up to 1920 x 1200@60Hz@30m; 1600 x 1200@60Hz@150m |
| Audio | |
| Input | N/A |
| Output | 2 x Mini Stereo Jack Female |
| Control | |
| RS-232 | Connector: 2 x DB-9 Male |
| Power | |
| Connectors | 1 x DC Jack |
| Consumption | 5.3 VDC, 4.77W |
| Environmental | |
| Operating Temperature | 32°-104°F (0°-40°C) |
| Storage Temperature | -4°-140°F (-20°-60°C) |
| Humidity | 0-80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.77 lb (0.35 kg) |
| Dimensions | 5.47 x 3.46 x 1.13 in. (13.90 x 8.80 x 2.86 cm) |
UPC 672792100925
EAN 0672792100925
