SmartAVI XVGA Video Extender, Transmitter and Reciever
VCT-100S
Save $61.60
The SmartAVI VCAT VCT100 is a XVGA Transmitter and XVGA Reciever. The VCAT is a high resolution UXGA video extender system designed to broadcast desktop video signals over unshielded twisted pair cabling (CAT5) up to 1000ft.

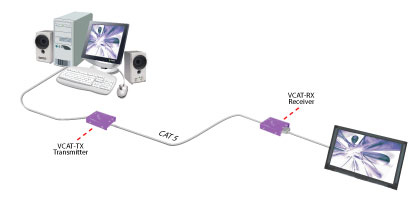

SmartAVI CAT5 Video Extender Application Diagram
SmartAVI VCAT Extender Features:
- Uses easy to install, inexpensive CAT5.
- Output reaches up to 1000 feet.
- Supports clear, high resolution video up to 1600 x 1200 feet.
- 300 MHz Bandwidth.
- Video cable compensation.
- Sends high resolution UXGA signals over a single CAT5.
- Compatible with VGA, XGA, Sun, MAC and SGI signals.
- Sync Format/Polarity Preservation
- High ground loop immunity.
- Built-in lightning, power surge and transient protection.
- Compact Enclosure.
- Fully compliant with standard modulated IR and the latest IRDA.
- Fully transparent path for all protocols and data transfers.
SmartAVI VCT100 Specifications:
| Mechanical | |
| Height | 0.85 in. (2.16 cm.) |
| Width | 2.81 in. (7.14 cm.) |
| Depth | 3.44 in. (8.74 cm.) |
| Weight | 0.25 lb. (0.11 kg.) |
| Power | |
| Requirements | 5VDC |
| Connector | 5 x 2.1mm DC jack |
| System Cable | |
| Type | CAT5 UTP EIA 56A |
| Connector | RJ45 |
| Video | |
| Bandwidth | 300MHz |
| Analog signal level | 1 Volt |
| Impedance | 75 ohms |
| Connector | High density HD15 |
| Format | VGA/SVGA/XGA/UXGA/ RGBHV/RGsB |
| Sync | TTL horizontal SyncRange: 15 to 130 KHz Vertical Sync Range: 30 to 120 Hz |
UPC 813280011174
EAN 0813280011174
Question: pair or 1 unit only?
Answer: Thank you for your inquiry. This product comes with both the transmitter [VCT-TX100S] and the receiver [VCT-RX100S].
Answer: Thank you for your inquiry. This product comes with both the transmitter [VCT-TX100S] and the receiver [VCT-RX100S].
