SmartAVI VDXS UXGA and RS232 Point to point CAT5 Extender
VDXS
The SmartAVI VDX System is a video extender which uses a single CAT5 to broadcast high resolution UXGA and RS232 1000ft away.
SmartAVI VDX Features:
- Uses easy to install, inexpensive CAT5/5e/6/7/8.
- Output reaches up to 1,000 feet (300 m).
- Supports high resolution clear video up to 1900x1200
- HDTV compatible (720p, 1080i,1080p)
- 300 MHz Bandwidth.
- Sends high-resolution XVGA and RS232 signals.
- Compatible with VGA, XGA, Sun, MAC and SGI
- Sync Format / Polarity Preservation.
- Bidirectional serial RS-232 (Tx/Rx) control.
- High ground loop immunity.
- Built-in lightning, power surge and transient protection.
- Designated trimmer in the remote unit to compensate for cable length.
- Compact metal case enclosure
- Remote units come with buffered outputs.

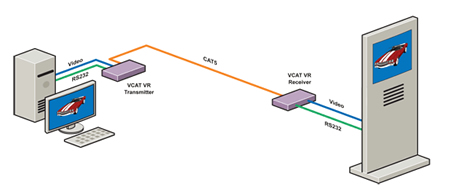

SmartAVI VDX Video Extender Application Diagram
Possible Applications:
- Presentations - The VDX series enhances any presentation from commercial products to corporate financial data. It can be used in show rooms, board rooms, trade shows, Kiosks and window displays.
- Data Broadcasting - Data such as news, stock prices, sports results, and flight information can be broadcast in real time to various monitors.
- Learning and Training - VDX can be used in educational presentations to multiple locations, in schools and in other training facilities.
Package Includes:
- VDX-TX Transmitter Unit
- VDX-RX Receiver Unit
- CCVGAMM06
- 2 X (PS5VD1A)
SmartAVI VDX Specifications:
| Mechanical | |
| Weight | 0.1 lb. (0.3 kg.) |
| Power | |
| Requirements | 5V DC @500mA |
| Connector | 5x2.1mm DC jack |
| Video | |
| Bandwidth | 400 MHz |
| Analog Signal Level | 1 Volt |
| Impedance | 75 ohms |
| Connector | High Density HD15 |
| Format | VGA/SVGA/XGA/UXGA/ RGBH/RGBsB |
| Sync | TTL horizontal SyncRange: 15 to 130 KHz Vertical Sync Range 30 to 120 Hz |
| RS232 | |
| Connection | Bi-directional Transmit Receive Only, RXD, TXD |
| System Cable | |
| Type | CAT5 UTP EIA 568A |
| Connector | RJ45 |
UPC 813280023900
EAN 0813280023900
Question: Hello. I have a touch screen that works on RS-232 protocol RxD, TxD, GND and RTS (pin 7 on DB9). Does the SmartAVI VDXS support RTS flow control? Many thanks in advance.
Answer: Thank you for your inquiry,
The SmartAVI VDXS does not support RTS flow control. You may want to consider the similar Adder X2-Silver extender instead, which we confirmed with the vendor supports full transparent RS232 including RTS flow control for touch screens.
Answer: Thank you for your inquiry,
The SmartAVI VDXS does not support RTS flow control. You may want to consider the similar Adder X2-Silver extender instead, which we confirmed with the vendor supports full transparent RS232 including RTS flow control for touch screens.
