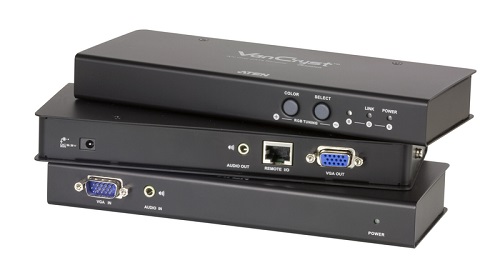

VGA/Audio Over CAT5 Extender KIT

 The VE300 A/V Over CAT5 Extender system is designed to integrate seamlessly into installations with the ATEN VM0808T CAT5 A/V Matrix Switch or stand alone using the VE300T and the VE300R. With ATEN's exclusive Deskew technology, the VE300 allows you to extend the distance between the A/V source and the display monitor by up to 500 feet (150 m) with a resolution of 1600x1200 (for the VE300R), or up to 1000 feet (300 m) with a resolution of 1280x1024 (for the VE300RQ).

Kit Contains:
VE300T
VE300R

Features:

• Uses Cat 5e cable to connect the Transmitter and Receiver
• Extends A/V source in VM0808T installations
• Supports one local and one remote displays
• Superior RGB deskew function (VE300RQ)- automatically synchronizes the time delay of RGB signals to compensate for distance
• Long Distance Transmission up to 1000 feet (300 m)
• Superior video quality
• - VE300R: 1920x1200@60Hz 100 feet (30 m), 1600x1200@60Hz 500 feet (150 m ), 1280x1024@60Hz 650 feet (200 m)
• Automatic and adjustable gain control - adjust signal strength to compensate for distance
• Supports wide screen
• Rack-mountable
• Built-in 8KV/15KV ESD protection

UPC 881317509727
EAN 0881317509727
