DVI/Audio Cat 5 Receiver Wall Plate (1920 x 1200@40m)
VE606R

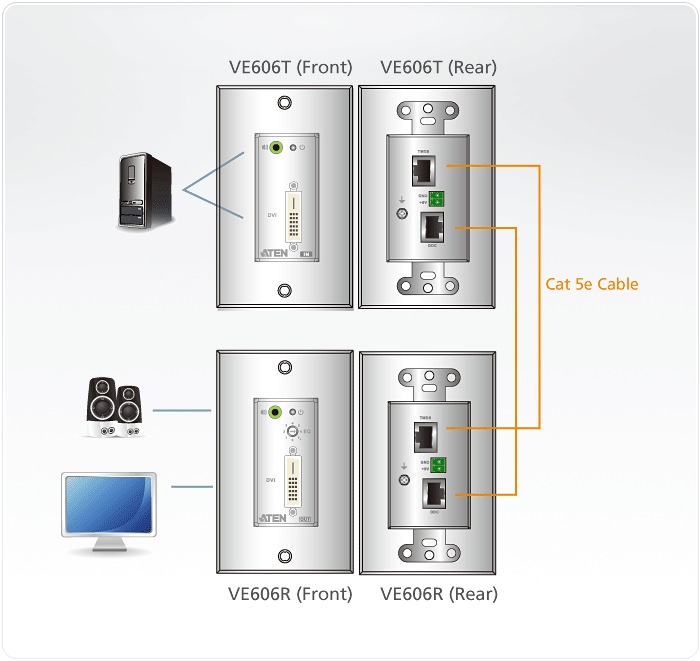

The VE606R DVI Over Cat 5 Receiver Wall Plate connects to a VE156T to extend signals up to 60m from the source using Cat 5e cables. It supports popular wide screen formats and ensures excellent video quality over long distance transmissions. The VE606 combination can further extend the distance or multiply sources/displays.
The VE606R can be powered from the Transmitter via a second Cat 5e cable to transmit the power signal. The VE606's compact wall plate design does away with bulky cables and allows a neat and convenient installation. It is an ideal solution for meeting rooms, museums and any environment that requires equipment or cabling to be kept hidden from public view.
Product Features
- Remotely powered from the Transmitter **
- Extends the distance between DVI source and DVI display
- Superior video quality - up to 1080p@60Hz (40m), 1080i@60Hz (60m)
- 8 segment equalization adjustment switch optimizes display quality
- Supports wide screen formats
- Supports hot-plugging
- Decora type design is easily configurable to fit various wall plates
- LED indication of power sources / connection status
- Supports stereo audio
- Built-in 8KV/15KV ESD protection
- Easy installation
- Wall mountable type for a neat and cleaner installation
- Plug-and-play - no software installation required
Package Includes
- 1x VE606R DVI Over Cat 5 Receiver Wall Plate
- 1x Terminal Block Connector
- 1x Power Adapter
- 1x User Instructions
Product Specifications
| Video Input | |
| Interfaces | N/A |
| Impedance | N/A |
| Video Output | |
| Interfaces | 1 x DVI-D Female |
| Impedance | 100Ω |
| Video | |
| Max Data Rate | 6.75 Gbps (2.25 Gbps Per Lane) |
| Max Pixel Clock | 225 MHz |
| Compliance | HDCP Compatible |
| Max Resolutions/Distance | Up to 1920 x 1200@40m; 1280 x 1024@60m |
| Audio | |
| Input | N/A |
| Output | 1 x Mini Stereo Jack Female |
| Power | |
| Connectors | 1 x Terminal Block |
| Consumption | 9V DC, 2.9W |
| Environmental | |
| Operating Temperature | 32°-104°F (0°-40°C) |
| Storage Temperature | -4°-140°F (-20°-60°C) |
| Humidity | 0-80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.4 lb (0.18 kg) |
| Dimensions (L x W x H) | 4.1 x 1.75 x 1.71 in. (10.41 x 4.44 x 4.34 cm) |
