HDMI Cat 5 Receiver (1080p@40m)
VE800AR
Save $14.39

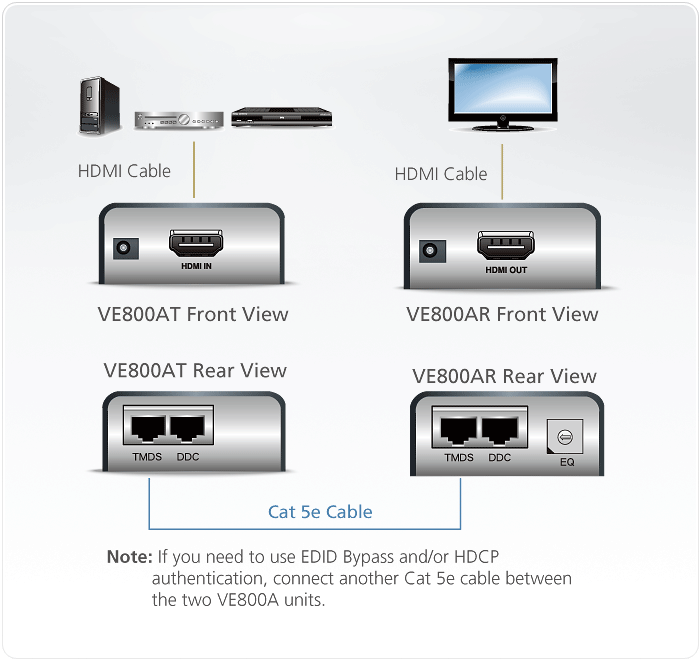

The VE800AR HDMI Receiver connects to a transmitter to extend signals up to 60m from the source using a Cat 5e cable. ATEN's VE800A incorporates new technology that allows the A/V signals to be transmitted over a single Cat 5e cable. DDC port is provided for the ability to use the display's EDID by simply connecting another Cat 5e cable. The VE800A supports HDMI features such as 3D and Deep Color to give you the picture perfect viewing experience you desire.
Product Features
- Features ATEN EDID technology that allows transmission over one Cat 5e cable
- Extend 1080p by 40 m; extend 1080i (HDTV) by 60 m
- Superior video quality - 1920 x 1200, up to 1080p
- HDMI (3D, Deep Color); HDCP Compatible
- Supports Dolby True HD and DTS HD Master Audio
- 8 segment equalization adjustment switch optimizes display quality
- DDC compatible
Package Includes
- 1x VE800AR HDMI Receiver
- 1x Power Adapters
- 1x Mounting Kit
- 1x User Instructions
Product Specifications
| Video Input | |
| Interfaces | N/A |
| Impedance | N/A |
| Video Output | |
| Interfaces | 1 x HDMI Type A Female |
| Impedance | 100Ω |
| Video | |
| Max Data Rate | 6.75 Gbps (2.25 Gbps Per Lane) |
| Max Pixel Clock | 225 MHz |
| Compliance | VE800R:HDMI (3D, Deep Color); HDCP Compatible |
| Max Resolutions/Distance | Up to 1080p@40m; 1080i@60m |
| Audio | |
| Input | N/A |
| Output | 1 x HDMI Type A Female |
| Power | |
| Connectors | 1 x DC Jack |
| Consumption | 5V DC, 0.75W |
| Environmental | |
| Operating Temperature | 32°-104°F (0°-40°C) |
| Storage Temperature | -4°-140°F (-20°-60°C) |
| Humidity | 0-80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.35 lb (0.16 kg) |
| Dimensions (L x W x H) | 3.54 x 2.17 x 0.87 in. (9.00 x 5.50 x 2.20 cm) |
UPC 672792005763
EAN 0672792005763
