HDMI/Audio Cat 5 Transmitter Wall Plate (1080p@40m)
VE806T

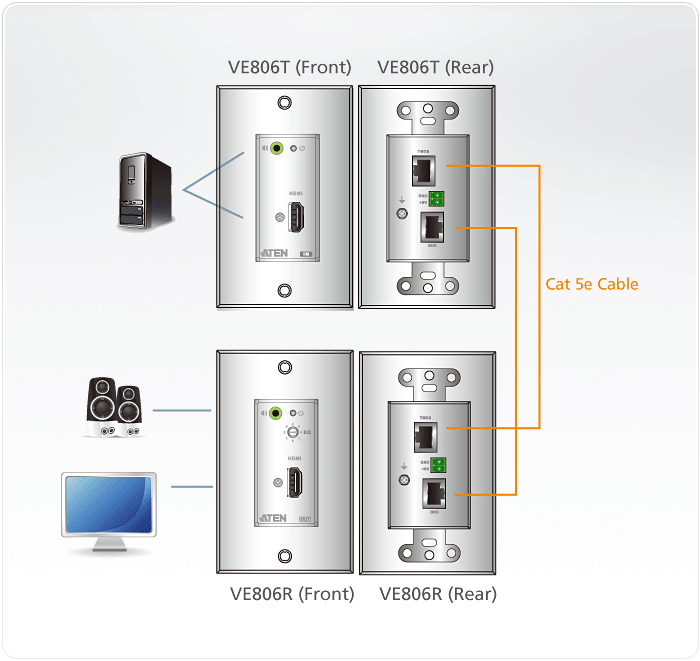

The VE806T HDMI Over Cat 5 Transmitter Wall Plate connects to a VE806R to extend signals up to 60m from the source using Cat 5e cables. It supports popular wide screen formats and ensures excellent video quality over long distance transmissions. The VE806 combination can further extend the distance or multiply sources/displays.
The VE806T can be powered from the Receiver via a second Cat 5e cable to transmit the power signal. The VE806's compact wall plate design does away with bulky cables and allows a neat and convenient installation. It is an ideal solution for meeting rooms, museums and any environment that requires equipment or cabling to be kept hidden from public view.
Product Features
- Remotely powered from the Receiver **
- Extends the distance between HDMI source and HDMI display
- Superior video quality - up to 1080p@60Hz (40m), 1080i@60Hz (60m)
- HDMI (3D, Deep Color); HDCP Compatible
- 8 segment equalization adjustment switch optimizes display quality
- Supports wide screen formats
- Supports hot-plugging
- Decora type design is easily configurable to fit various wall plates
- LED indication of power sources / connection status
- Supports stereo audio
- Built-in 8KV/15KV ESD protection
- Easy installation
- Wall mountable type for a neat and cleaner installation
- Plug-and-play - no software installation required
Package Includes
- 1x VE806T HDMI Over Cat 5 Transmitter Wall Plate 1x Terminal Block Connector 1x Power Adapter 1x User Instructions
Product Specifications
| Video Input | |
| Interfaces | 1 x HDMI Type A Female |
| Impedance | 100Ω |
| Max Distance | 1.8 m |
| Video Output | |
| Interfaces | N/A |
| Impedance | N/A |
| Video | |
| Max Data Rate | 6.75 Gbps (2.25 Gbps Per Lane) |
| Max Pixel Clock | 225 MHz |
| Compliance | HDMI (3D, Deep Color), HDCP Compatible |
| Max Resolutions/Distance | Up to 1080p@40m; 1080i@60m |
| Audio | |
| Input | 1 x HDMI Type A Female |
| Output | N/A |
| Power | |
| Connectors | 1 x Terminal Block |
| Consumption | 9V DC, 2.9W |
| Environmental | |
| Operating Temperature | 32°-104°F (0°-40°C) |
| Storage Temperature | -4°-140°F (-20°-60°C) |
| Humidity | 0-80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.37 lb (0.17 kg) |
| Dimensions (L x W x H) | 4.1 x 1.75 x 1.57 in. (10.41 x 4.44 x 4.00 cm) |
