HDMI Wireless Extender
VE809

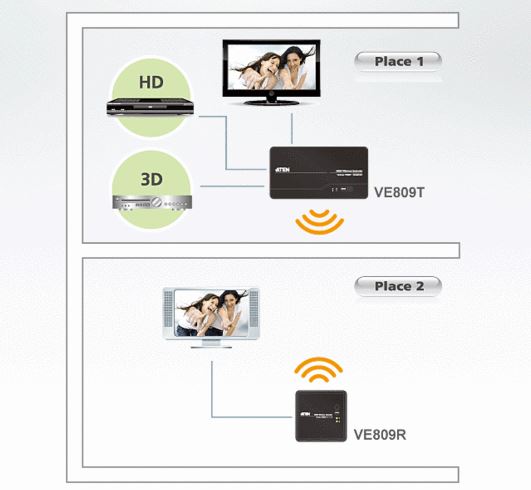

The VE809 HDMI Wireless Extender extends your HDMI display up to 30 m from the HDMI source using wireless technology. Easily connect two HDMI devices to an HDTV wirelessly with crystal clear image quality capable of streaming Full 1080p with 5.1 channel digital audio and 3D technology. The IR remote control allows you to switch between HDMI source devices from the receiver side, remotely; and allows you to watch a local and wirelessly connected HDTV- simultaneously. The VE809 consists of a wireless audio/ video transmitter and receiver. Consolidate your HDMI electronics and use the VE809 as a wireless 2-port HDMI switch to connect remote devices such as Blu-ray players and HD Cable boxes to design your own custom wireless entertainment space.
Product Features and Benefits
- Wirelessly extend an HDMI display up to 30 m from the HDMI source
- Setup two HDTVs and view HD content on two HDTVs simultaneously
- Connect and transmit wireless video content from your Bluray DVD player, HD Cable box or other HDMI device wirelessly
- Wireless 3D Supported
- Wireless HD in Full 1080p and 5.1 channel digital audio
- Superior video quality - 480p, 720p, 1080i and 1080p
- Keep home theater electronic devices neatly out-of-sight
- Built-in IR receiver allows control of source devices from the remote side
- No software or driver installation needed
- HDCP compatible
- Based on WHDI Technology - Low latency Ü1ms
Package Contains
- 1x VE809T HDMI Wireless Extender
- 1x VE809R HDMI Wireless Extender
- 1x IR Remote Control
- 1x IR Blaster Cable
- 1x HDMI Cable
- 1x Mini USB Power Adapter (VE809R)
- 1x Power Adapter (VE809T)
- 2x AAA Batteries
- 1x User Instructions
| Video Transmitter | |
| Input | 2 x HDMI Type A Female |
| Impedance | 100 Ohm |
| Max Distance | 1.8 m |
| Output | 1 x HDMI Type A Female |
| Impedance | 100 Ohm |
| Receiver | |
| Input | None |
| Output | 1 x HDMI Type A Female |
| Impedance | 100 Ohm |
| Video | |
| Max Data Rate | 6.75 Gbps (2.25 Gbps per lane) |
| Max Pixel Clock | 225 Mhz |
| Compliance | HDMI 3D, HDCP Compatible |
| Max Resolutions / Distance | Up to 1080 @ 30 meters |
| Control | IR, 1 x 2.5mm Mini Stereo ( Rec. and Trans.) |
| Power | |
| Connectors | 1 x DC Jack (Mini USB Rec.); 1 x DC Jack (Trans.) |
| Consumption | 5VDC, 7.5W (Rec.); 5VDC, 10W (Trans.) |
| Environment | |
| Operating Temperature | 32-122°F (0-50°C) |
| Storage Temperature | -4-140°F (-20-60°C) |
| Humidity | 0-80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.75 lbs. (0.33 kg) |
UPC 672792004162
EAN 0672792004162
