HDMI HDBaseT Extender (4K@100m) (HDBaseT Class A)
VE812
Save $116.90
The VE812 HDMI over Single Cat 5 Extender enables an HDMI display to be located up to 100 meters away from the source device. It can conveniently be extended using only one Cat 5e cable, which is cost-effective.
The VE812 not only supports HDMI (3D, Deep Color ) but also Ultra HD (4k x 2k) and is HDCP compatible. Furthermore remote EDID pass-through ensures optimum video quality for your HDMI display.
Product Features
- Extends the distance between HDMI source and HDMI display

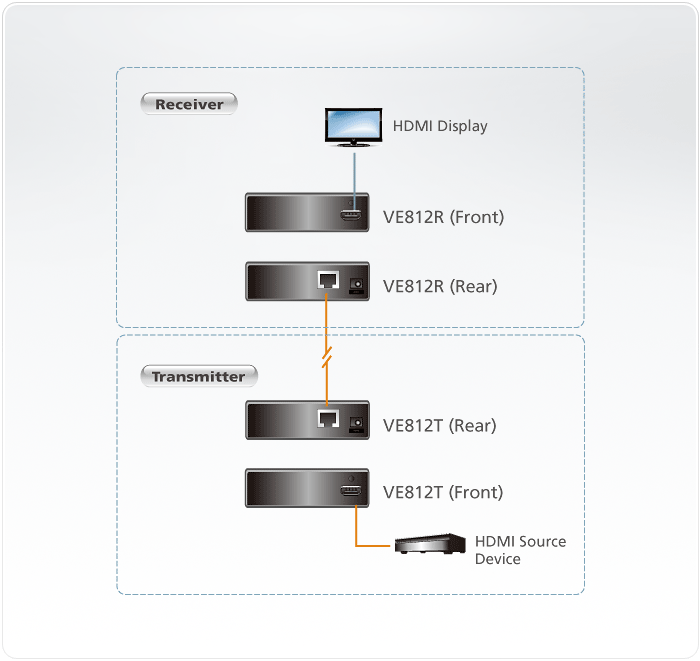

- Implements HDBaseT extension technology using only one Cat 5 cable to connect the transmitter and receiver
- HDMI (3D, Deep Color, 4kx2k); HDCP Compatible
- Anti-jamming - resists signal interference during high-quality video transmission using HDBaseT technology
- Long distance transmission - up to 100m
- Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
- EDID Expert - selects the optimum EDID settings for smooth power-up and highest quality display
- Supports up to 340MHz bandwidth for high performance video
- Supports Dolby True HD and DTS HD Master Audio
- Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15 KV)
Package Includes
- 1x VE812T HDMI Over Single Cat 5 Transmitter
- 1x VE812R HDMI Over Single Cat 5 Receiver
- 2x Power Adapters
- 1x Mounting Kit
- 1x User Instructions
Product Specifications
| Video Input | |
| Interfaces | VE812R: N/A VE812T: 1 x HDMI Type A Female |
| Impedance | VE812R: N/A VE812T: 100Ω |
| Max Distance | VE812R: N/A VE812T: 1.8 m |
| Video Output | |
| Interfaces | VE812R: 1 x HDMI Type A Female VE812T: N/A |
| Impedance | VE812R: 100Ω VE812T: N/A |
| Video | |
| Max Data Rate | VE812R: 10.2 Gbps (3.4 Gbps Per Lane) VE812T: 10.2 Gbps (3.4 Gbps Per Lane) |
| Max Pixel Clock | VE812R: 340 MHz VE812T: 340 MHz |
| Compliance | VE812R: HDMI (3D, Deep Color, 4K); HDCP Compatible; Consumer Electronics Control (CEC) VE812T: HDMI (3D, Deep Color, 4K); HDCP Compatible; Consumer Electronics Control (CEC) |
| Max Resolutions/Distance | Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a); 1080p@100m *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
| Audio | |
| Input | VE812R: N/A VE812T: 1 x HDMI Type A Female |
| Output | VE812R: 1 x HDMI Type A Female VE812T: N/A |
| Power | |
| Connectors | VE812R: 1 x DC Jack VE812T: 1 x DC Jack |
| Consumption | VE812R: 5.3V DC, 4.5W VE812T: 5.3V DC, 1.9W |
| Environmental | |
| Operating Temperature | VE812R: 32°-104°F (0°-40°C) VE812T: 32°-104°F (0°-40°C) |
| Storage Temperature | VE812R: -4°-140°F (-20°-60°C) VE812T: -4°-140°F (-20°-60°C) |
| Humidity | VE812R: 0-80% RH, Non-Condensing VE812T: 0-80% RH, Non-Condensing |
| Physical Properties | |
| Housing | VE812R: Metal VE812T: Metal |
| Weight | VE812R: 0.9 lb (0.41 kg) VE812T: 0.88 lb (0.40 kg) |
| Dimensions (L x W x H) | VE812R: 5.58 x 4.06 x 1.18 in. (14.17 x 10.30 x 3.00 cm) VE812T: 5.58 x 4.06 x 1.18 in. (14.17 x 10.30 x 3.00 cm) |
UPC 672792004438
EAN 0672792004438
