HDMI HDBaseT Transmitter w/ Dual Output (4K@100m) (HDBaseT Class A)
VE814T

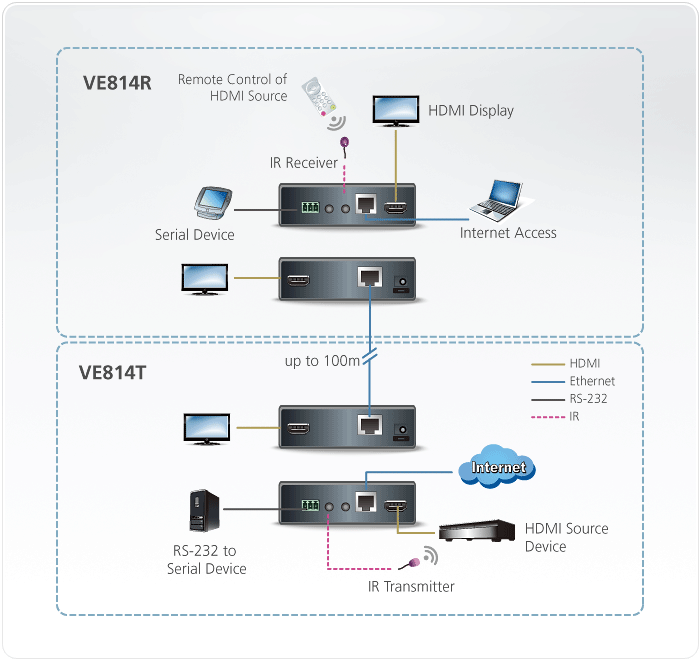

Place your HDMI displays up to 100 meters away from your HDMI source devices with the VE814T HDMI Transmitter over single Cat 5 with Dual Display. Connecting to the VE814R receiver via affordable and easily available Cat 5e/6 cable, your media can be streamed to up to three HDMI displays - dual displays connected to the receiver and another to the transmitter.
The VE814T also carries an Ethernet pass-through port for Internet connectivity, as well as RS-232 and IR signaling pass-through, which allows you to control the HDMI source device from the remote unit (VE814R) while also granting access to the HDMI display device from the local unit (VE814T). The VE814T is HDMI (3D, Deep Color, 4Kx2K) and HDCP compatible, ensuring superior video quality and peak performance from your HDMI displays.
Product Features
- Extends the distance between HDMI source and HDMI display
- Implements HDBaseT extension technology using only one Cat 5 cable to connect the transmitter and receiver
- Anti-jamming - resists signal interference during high-quality video transmissions using HDBaseT technology
- Supports one local and two remote displays
- Supports two IR channels for bi-directional IR signal transmission
- Extends Ethernet communication with pass-through port
- HDMI (3D, Deep Color,4kx2k); HDCP Compatible
- Long distance transmission - up to 100 m
- Supports wide screen
- Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
- Supports up to 340 MHz bandwidth for high performance video
- EDID Expert - selects the optimum EDID settings for smooth power-up and highest quality display
- RS-232 Serial Port for serial device peripherals, such as touch screens, bar coders scanners, and so on
- Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15 KV)
- Easy to install - no software required
- Rack Mountable
Package Includes
- 1x VE814T
- 1x IR Transmitter
- 1x Mounting Kit
- 1x Power Adapter
- 1x User Instructions
Product Specifications
| Video Input | |
| Interfaces | 1 x HDMI Type A Female |
| Impedance | 100Ω |
| Distance | 1.8 m |
| Video Output | |
| Interfaces | 1 x HDMI Type A Female |
| Impedance | 100Ω |
| Video | |
| Max Data Rate | 10.2 Gbps (3.4 Gbps Per Lane) |
| Max Pixel Clock | Up to 340 MHz |
| Compliance | HDMI (3D, Deep Color, 4K) HDCP Compatible Consumer Electronics Control (CEC) |
| Max Resolutions/Distance | Up to 4K@70m (Cat 5e/6) / 100m (cat 6a); 1080p@100m *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
| Audio | |
| Input | 1 x HDMI Type A Female |
| Output | 1 x HDMI Type A Female |
| Control | |
| RS-232 | 1 x Terminal Block, 3 Pole |
| IR | 2 x Mini Stereo Jack Female |
| Ethernet | 1 x RJ-45 Female |
| Power | |
| Connectors | 1 x DC Jack |
| Consumption | 5.3V DC, 8.5W |
| Environmental | |
| Operating Temperature | 32°-104°F (0°-40°C) |
| Storage Temperature | -4°-140°F (-20°-60°C) |
| Humidity | 0-80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 1.01 lb (0.46 kg) |
| Dimensions (L x W x H) | 5.58 x 4.06 x 1.18 in. (14.17 x 10.30 x 3.00 cm) |
UPC 672792006791
EAN 0672792006791
