Velocity KVM Transmitter, Dual & Single Link DVI, USB 1.1, KMAS, Single Mode

Call 1-877-586-6654 for discounted pricing and ordering information.

The Thinklogical VEL-000S28-SCTX is a Velocity KVM Extender Transmitter, Dual and Single Link DVI, USB 1.1, KMAS, Single Mode, and SC/APC. This Transmitter is part of the Velocity KVM Extension System - 28.

The Velocity kvm System - 28 has a simple transmitter/receiver design which allows for ease of installation and straight forward deployment. Depending on the user's infrastructure, the transmitter and the receiver can be connected by multi-mode or single-mode fiber optic cable. The transmitter unit connects to the CPU with the supplied peripheral cables. In addition, local video, keyboard, and mouse ports are on the transmitter. The receiver unit provides connections to the user interface devices.

Leveraging standard SFP+ transceivers, the system allows for the usage of either multi-mode or single-mode fiber optic cable. The Velocity kvm Extender - 28 requires four fibers for a multi-mode configuration. Three fibers are dedicated to the video and USB while the fourth fiber is the back channel for the USB and DDC. The DDC (Display Data Channel) or EDID (Extended Display Identification Data) information is provided to the CPU by either a generic table stored inside the transmitter, or from a display connected to the transmitters local port. Also, the added capability of active DDC allows the remote monitor to send its display capabilities to the CPU. Multi-mode models are available with SC, ST, or LC type fiber connectors.

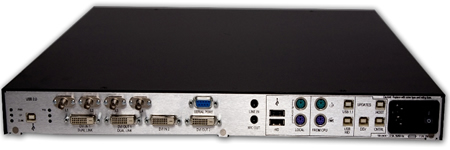

Thinklogical VEL-000S28-SCTX Backview

Thinklogical VEL-000S28-SCTX Features:

• Supports one Dual-Link DVI signal with maximum resolution of 3840 x 2400
• MRTS technology 6.25Gbps allows for full frame rate transmission of uncompressed DVI
• Supports USB HID, USB 1.1 and USB 2.0 devices
• Local KVM connections on the transmitter
• DDC2B/EDID compliant
• Flawless image quality with no frame dropping
• USB HID, USB 1.1 and USB 2.0 compliant- High Speed 480 Mbps, 4-port hub
• Extends signals up to: - 750 meters using SX+ multi-mode fiber - 1000 meters using eSX+ multi-mode fiber - 10 kilometers using single-mode fiber
• Two video outputs on the receiver
• Full keyboard and mouse emulation through the transmitter, full duplex stereo audio, serial RS-232
• Simple plug and play
• Fully compatible with Thinklogical's KVM VXRouter line of products
• Model available with USB 1.1 and Ethernet 10/100 Base-T network extension

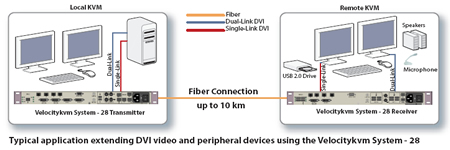

Thinklogical Velocity KVM System-28 Application Diagram

Thinklogical VEL-000S28-SCTX Specifications:
