The Thinklogical VELOCITY 4 KVM Extender Receiver with USB 1.1 and Ethernet 10/100 Base-T Network Extension features Single Head, Single Link DVI, USB 1.1, Network, KMASS, and Multi-Mode.

The Velocity KVM System - 4 has a simple transmitter/receiver design which allows for ease of installation and straight forward deployment. Depending on the user's infrastructure, the transmitter and the receiver can be connected by multi-mode or single-mode fiber optic cable. The transmitter unit connects to the CPU with the supplied peripheral cables. In addition, local video, keyboard, and mouse ports are on the transmitter. The receiver unit provides connections to the user interface devices.

Leveraging standard SFP+ transceivers, the system allows for the usage of either multi-mode or single-mode fiber optic cable. The Velocity kvm Extender - 4 requires two fibers for a multi-mode configuration. One fiber is dedicated to the video and USB while the second fiber is the back channel for the USB and DDC. The DDC (Display Data Channel) or EDID (Extended Display Identification Data) information is provided to the CPU by either a generic table stored inside the transmitter, or from a display connected to the transmitters local port. Also, the added capability of active DDC allows the remote monitor to send its display capabilities to the CPU. Multi-mode models are available with SC, ST, or LC type fiber connectors.

The Velocity kvm System - 4 is also offered in a single-mode option. Standard fiber count is two, however models with fewer fibers are available.

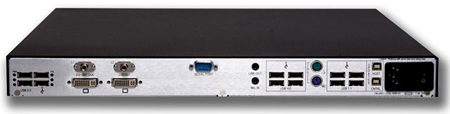

Thinklogical Velocitykvm-4 Receiver Backview

The available Thinklogical Velocity 4 KVM Extender Receivers with USB 1.1 and Ethernet 10/100 Base-T Network Extension are:

• VEL-0N0M04-LCRX : with LC Fiber Connection Option

• VEL-0N0M04-SCRX: with SC Fiber Connection Option

• VEL-0N0M04-STRX: with ST Fiber Connection Option

*NOTE: Please make sure to select the fiber connection of your choice from the drop down options above. The Transmitters are sold separately.

Thinklogical VelocityKVM-4 Receiver Features:

• Supports all single-link DVI video resolutions
• 6.25 Gbps signal transmission via fiber optic cable no RF interference
• MRTS technology 6.25Gbps allows for full frame rate transmission of uncompressed DVI
• Requires one or two fiber optic cables depending on application
• Flawless image quality with no frame dropping
• Local KVM connections on the transmitter
• Additional video output on the receiver
• Extends signals up to: - 750 meters using SX+ multi-mode fiber - 1000 meters using eSX+ multi-mode fiber - 10 kilometers using single-mode fiber
• USB HID compliant, 4-port hub
• USB 1.1 compliant, 4-port hub
• USB 2.0 compliant - High Speed 480 Mbps., 4-port hub
• DDC2B/EDID compliant
• Fully compatible with Thinklogical's KVM VXRouter line of products
• Full keyboard and mouse emulation through the transmitter, full duplex stereo audio, serial RS-232
• Simple plug and play
• Model available with USB 1.1 and Ethernet 10/100 Base-T network extension

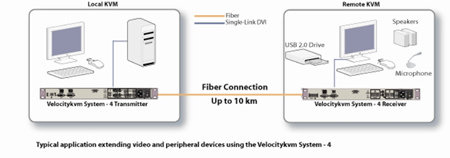

Thinklogical Velocity KVM System -4 Application Diagram

Thinklogical VelocityKVM-4 Receiver Specifications:
