Velocity KVM Receiver, Three DVI, HID, KMAS, Single Mode, SC/APC
VEL-H00S35-SCRX
Call 1-877-586-6654 for discounted pricing and ordering information.
The Thinklogical VEL-H00S35-SCRX is a Velocity KVM Extender Receiver, Three DVI, HID, KMAS, Single Mode, and SC/APC. This Receiver is part of the Velocity KVM Extension System - 35.
The Velocity kvm System - 35 has a simple transmitter/receiver design which allows for ease of installation and straight forward deployment. Depending on the user's infrastructure, the transmitter and the receiver can be connected by multi-mode or single-mode fiber optic cable. The transmitter unit connects to the CPU with the supplied peripheral cables. In addition, local video, keyboard, and mouse ports are on the transmitter. The receiver unit provides connections to the user interface devices.
Leveraging standard SFP+ transceivers, the system allows for the usage of either multi-mode or single-mode fiber optic cable. The Velocity kvm Extender - 35 requires four fibers for a multi-mode configuration. Three fibers are dedicated to the video and USB while the fourth fiber is the back channel for the USB and DDC. The DDC (Display Data Channel) or EDID (Extended Display Identification Data) information is provided to the CPU by either a generic table stored inside the transmitter, or from a display connected to the transmitters local port. Also, the added capability of active DDC allows the remote monitor to send its display capabilities to the CPU. Multi-mode models are available with SC, ST, or LC type fiber connectors.

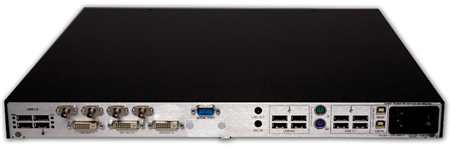

Thinklogical VEL-H00S35-SCRX Backview
Thinklogical VEL-H00S35-SCRX Features:
- Supports three Single-Link DVI signal with maximum resolution of 1920 x1200
- MRTS technology 6.25Gbps allows for full frame rate transmission of uncompressed DVI
- Supports USB HID, USB 1.1, and USB 2.0 devices
- DDC2B/EDID compliant
- Flawless image quality with no frame dropping
- USB HID, USB 1.1, and USB 2.0 Compliant- High Speed 480 Mbps., 4-port hub
- Extends signals up to: - 750 meters using SX+ multi-mode fiber - 1000 meters using eSX+ multi-mode fiber - 10 kilometers using single-mode fiber
- Local KM ports on transmitter (Local video with Thinklogical's 1:2 DVI Splitter)
- Three video outputs on the receiver
- Full keyboard and mouse emulation through the transmitter, full duplex stereo audio, serial RS-232
- Simple plug and play
- Fully compatible with Thinklogical's KVM VXRouter line of products
- Model available with USB 1.1 and Ethernet 10/100 Base-T network extension

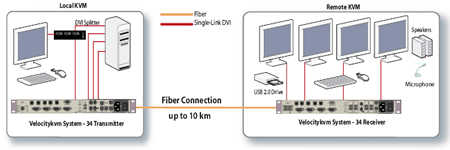

Thinklogical Velocity KVM System-35 Application Diagram
Thinklogical VEL-H00S35-SCRX Specifications:
| Mechanical | |
| Height | 1.72 in. (4.4 cm.) |
| Width | 17.49 in. (44.5 cm.) |
| Depth | 18.02 in. (45.8 cm.) |
| Weight | 11 lbs. (12.25 kg.) |
| Video | DVI-D (3) |
| Video Resolution | Single-Link DVI 1920 x 1200 |
| Environmental | |
| Operating Temperature | 0°-50°C (32°-122°F) |
| Humidity | 5-95% RH, Non-Condensing |
| Supply Voltage | 100-240 VAC, 47-63 Hz, Universal AC Power Supply |
| Optical | |
| Optical Cable | Single-Mode and Multi-Mode over Two Fibers (for fewer fiber counts contact Thinklogical) Fiber is Available, Not Supplied |
| Optical Distance | Up to 50 meters using 62.5/125um, type OM1 Up to 350 meters using 50/125um, type OM2 Up to 750 meters using 50/125um, type OM3 Up to 1000 meters using 50/125um, type OM3 enhanced Up to 10 kilometers using 9/125um, type OS2 (Single-Mode) (Please contact Thinklogical for distances over 10 kilometers) |
| Power Consumption | 40 Watts per Unit |
| Compliance | Approvals for US, Canada, and European Union |
| Audio MIC & Audio Line | 3.5mm Jack |
| Serial Port | DB9 Male RS-232 |
| USB 1.0 (HID), USB 1.1, and USB 2.0 | USB A (4) |
| PS2 Keyboard & Mouse | MiniDIN 6 Female |
| Software Updates | USB B (2) |
| Fiber Connectors | SC/APC for Single-Mode LC, SC or ST for Multi-Mode |
| Cables Included | USB A to USB B Cable, 6 feet |
