SmartAVI VNET+4P 4 Port WUXGA, USB, and Audio KVM Switch
VNET+4PS
Save $88.09
The SmartAVI VNET+4PS is a 4-Port Cross-platform WUXGA KVM that controls 4 computers, PC or MAC, on one display with USB keyboard, mouse and stereo audio. Includes: VNET+4P & PS5VD2A.

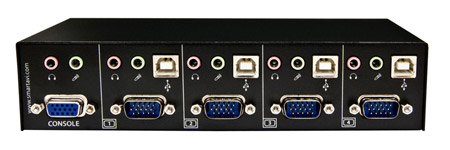

SmartAVI VNET+4P Backview
SmartAVI VNET+4P Features:
- Supports Mac, PC, Linux and Sun VGA
- Supports High Resolution1920x1200 60Hz WUXGA
- USB Console Keyboard and Mouse Support
- Balanced Stereo Audio Output
- Front Panel Tactile Switch with Status LED Indicator
- Supports Auto-scan Mode for Simple Discovery
SmartAVI VNET+4P Application Diagram
SmartAVI VNET+4PS Applications:
In the medical or industrial field, where it may not be practical (or safe) to have one or more CPUs in the general vicinity, SmartAVI's VNet+ Switch Series is the perfect solution, allowing for either PC or Mac signals to be extended
from computer to monitor.
- Home Theater Integration
- Digital Signage Deployment
- Information Kiosks/Displays
- Film/Recording Studios
SmartAVI VNET+4P Specifications:
| Mechanical | |
| Width | 7.87 in. (19.9 cm.) |
| Height | 1.62 in. (4.11 cm.) |
| Depth | 3.5 in. (8.89 cm.) |
| Weight | 7 lbs. (3.2 kgs.) |
| Video | |
| Format | VGA RGB Analog (75ohm, 0.7Vp-p) |
| Resolution | Up to 1600x1200 @ 85Hz 2048x1536 @60Hz |
| Input Interface | (4)HD-15 Female |
| Output Interface | (1)HD-15 Female |
| H Frequency Range | 30-95KHz |
| V Frequency Range | 50-180Hz |
| Audio | |
| Frequency Response | 20Hz to 20KHz |
| Impedance | 600 ohm |
| Nominal Level | 0-1.0 V |
| Common Mode | Rejection at 60dB |
| Input Interface | (8)3.5mm Stereo Audio |
| Output Interface | (2)3.5mm Stereo Audio |
| USB | |
| Signaling | USB 1.1 and 1.0 |
| Input Interface | (4)USB Type B |
| Output Interface | (2)USB Type A |
| Power | External 100-240 VAC/5VDC2A @ 10W |
| Environmental | |
| Operating Temperature | 32-121 F (0-55C) |
| Humidity | Up to 95% |
| Emulation | Keyboard or Mouse Emulation |
| Approvals | UL, CE, ROHS Compliant |
UPC 813280020350
EAN 0813280020350
