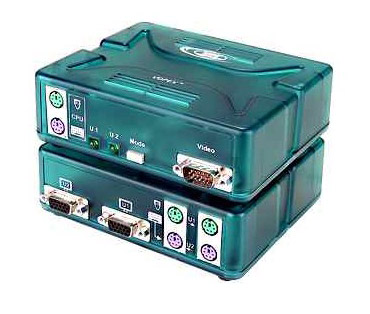

VGA PS/2 KVM Splitter, 2-Port

This KVM splitter allows two keyboards, monitors & mice to control one PC. Access one computer from the office, shop floor, board room, etc.

• Access one computer from multiple locations.
• Multiple users can enter data into the same program.
• Interconnect VPI switches and splitters for complex applications.
• Compatible with all PS/2-style PCs, RS6000, SGI and HP9000 computers.
• Supports international keyboard layouts.

Monitor

• Female 15 pin HD connectors for VGA monitors.
• Bandwidth is 150 MHz, supporting 1900x1200 resolution.

Keyboard

• Female 6 pin miniDIN connectors.
• Keyboard & mice can be hot-plugged.
• In Inst or Delay Mode, typing or mouse movement activates user control.
• Supports international keyboard layouts.

Mouse

• Female 6 pin miniDIN connectors for PS/2-style mice on VOPEX-xx-IM models.
• The following devices are also supported:
• Alps Glidepoint Touchpad.
• Logitech (and other) 3-button mice.
• Microsoft Ballpoint mouse.
• Microsoft Intellimouse.
• IBM Scroll Point mouse will function as a two-button mouse. Extended stick functions are not supported.
• The devices listed above are fully supported unless otherwise noted. However, some mouse types cannot be mixed on the same splitter. Ask about these and any other limitations before ordering if you plan to use a device listed.

Control Methods

• Press MODE button to cycle through all 6 modes. LEDs indicate which mode is selected.
• USER 1 Mode Only USER 1 can type or move the mouse.
• USER 2 Mode Only USER 2 can type or move the mouse.
• INST Mode Keyboard or mouse activates immediately
• DELAY Mode Locked out user(s) must wait five seconds after last keystroke or mouse movement occurs on active user.

Power

• Powered from attached computers.

Cables

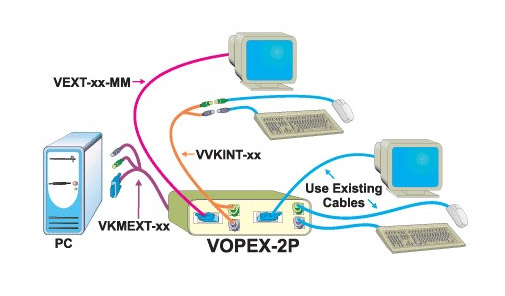

• Three-foot interface cables are provided to connect your PS/2 keyboard, mouse and video ports to the VOPEX-2P.
• Extend high resolution to 250 feet with our VEXT-xx cables.

MTBF

• 1,966,725 Hours
