4-Port S-Video Splitter w/ Audio
VOPEX-SVA-4-LC

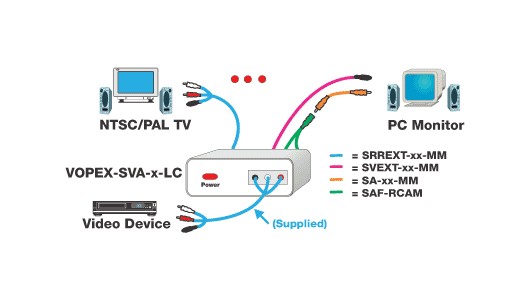

The VOPEX-SVA-4-LC S-Video/Audio splitter accepts S-Video and audio signals and broadcasts them to multiple output displays with support for numerous devices (TV, monitor, home theater system, projector, etc.). The same image is displayed on all outputs with no degradation, and the same audio is sent to all speakers.
- Supports high resolution SVGA (800x600) output.
- No loss of signal.
- No picture degradation.
- Economical way to expand the output of numerous devices (DVD player, cable box, satellite receiver) to multiple TVs.
Product Specifications
| Video Input |
| Female 4 pin mini-DIN input connector. |
| 75 ohm input impeadance. |
| Video Output |
| Four female 4 pin miniDIN connectors. |
| Output impedance: 75 Ohms. |
| 800x600 resolution with no degradation. |
| Bandwidth is 10 Mhz. |
| Audio Input |
| One set (R&L) of RCA audio jacks. |
| Input impedance: 40k Ohms. |
| Audio Output |
| RCA audio jacks (right & left speakers). |
| Power |
| 110 VAC at 60 Hz via AC Adapter. |
| Dimensions |
| 4 port WxDxH (in): 5.1x4.2x1.6 |
| Package Includes |
| S-Video/Audio splitter. |
| AC Adapter. |
| 6-foot dual RCA audio & S-Video combination cable, male-to-male. |
| User Manual. |
