8-Port VGA/Audio Splitter (450MHz)
VS0108

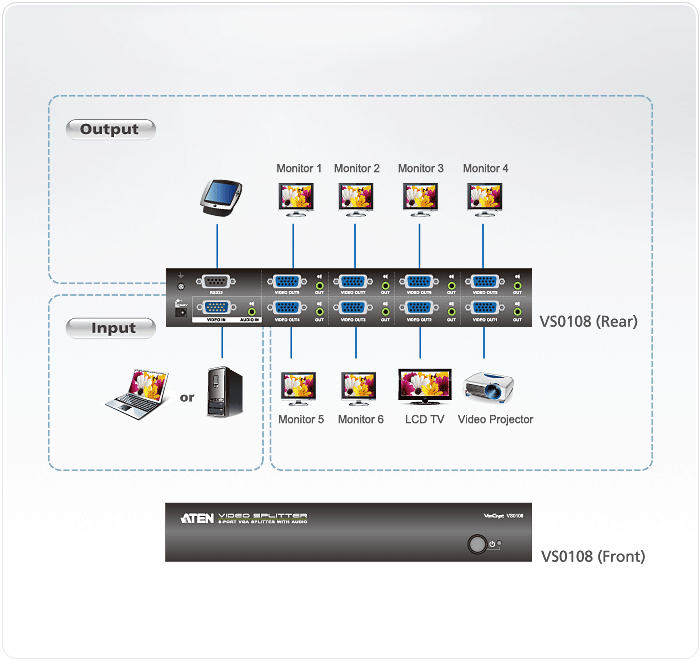

The ATEN VS0108 8-Port VGA Splitter with Audio is VGA splitter that allow a single VGA video & audio signal to be distributed to eight output displays with independent stereo control. The splitter support up to 400MHz video bandwidth, which provides optimum video quality, supported by resolutions up to 1920x1440.
Furthermore, for complete systems integration, serial control is standard through the VS0108 built-in RS-232 ports, which allow the splitter to be controlled through a high-end controller or PC.
Product Features
- One video input to 8 video outputs
- Superior video quality - up to 1920 x 1440 @ 60Hz
- Supports up to 400MHz bandwidth for high performance video
- Long distance transmission - up to 65m *
- Supports VGA, SVGA, UXGA, WUXGA, and multisync
- EDID Expert - selects the optimum EDID settings for smooth power-up and highest quality display
- Expandable - provides up to 512 video displays
- Features RS-232 serial port for command controls **
- RS-232 chain control - use RS-232 commands to control cascaded devices via VGA cable
- Supports stereo audio
- Plug-and-play - no software installation required
Package Includes
- 1x 8-Port VGA Splitter with Audio
- 1x Power Adapter
- 1x User Instructions
* Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality
** The VS0108 AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com)
Product Specifications
| Video Input | |
| Interfaces | 1 x HDB-15 Male |
| Impedance | 75Ω |
| Max Distance | 1.8 m |
| Video Output | |
| Interfaces | 8 x HDB-15 Female |
| Impedance | 75Ω |
| Video | |
| Max Bandwidth | 450 MHz |
| Max Resolution | Up to 1920 x 1440 |
| Max Distance | Up to 30 m |
| Audio | |
| Input | 8 x Mini Stereo Jack Female |
| Output | 8 x Mini Stereo Jack Female |
| Control | |
| RS-232 | 1 x DB-9 Female |
| EDID Settings | EDID Mode: Default / Port 1 / Auto |
| Power | |
| Connectors | 1 x DC Jack |
| Consumption | 5.3 VDC, 2.3W |
| Environmental | |
| Operating Temperature | VE829R: 32°-122°F (0°-40°C) VE829T: 32°-104°F (0°-40°C) |
| Storage Temperature | VE829R: -4°-140°F (-20°-60°C) VE829T: -4°-140°F (-20°-60°C) |
| Humidity | VE829R: 0-80% RH, Non-Condensing VE829T: 0-80% RH, Non-Condensing |
| Physical | |
| Housing | Metal |
| Weight | 1.92 lb (0.87 kg) |
| Dimensions L x W x H | 10.24 x 3 x 1.73 in. (26.00 x 7.61 x 4.40 cm) |
UPC 672792003905
EAN 0672792003905
