4-Port VGA/Audio Switch
VS0401
Save $32.82

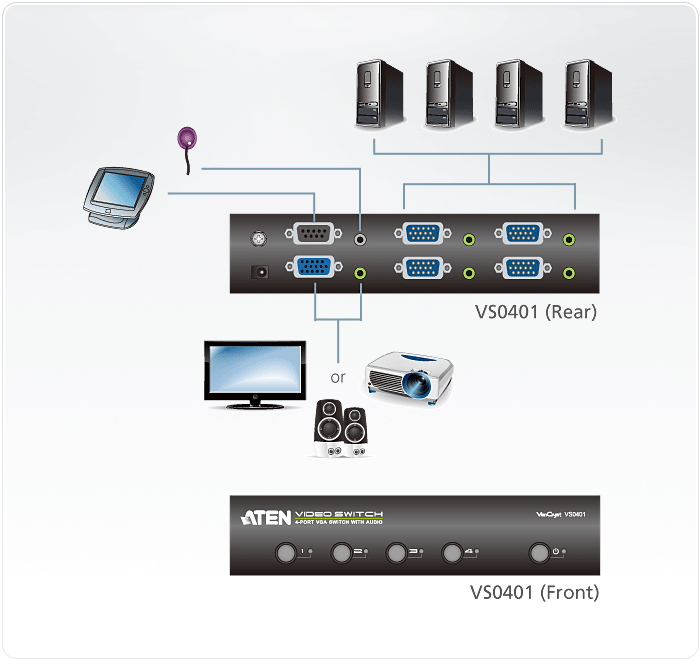

The VS0401 4-Port VGA Switch with Audio allows you to connect four audio/video source computers to a single monitor or projector with full audio and quickly switch between the devices for use.
VS0401 built-in bi-directional RS-232 serial port for high-end system control, and advanced RS-232 control. With the ability to use high-end serial control devices via RS-232 commands allows the VS0401 to be controlled by secondary systems with advanced functions such as; port switching, auto switching, front panel pushbutton lock, and Power on Detection.
Product Features
- Displays the video output of four computers on a single monitor or projector
- Quick and easy switching between VGA/Audio sources via front panel pushbuttons, RS-232, or IR remote control
- Superior video quality - up to 1920 x 1440
- Long-distance transmission - up to 65 m *
- Supports VGA, SVGA, UXGA, WUXGA and multisync monitors
- Video DynaSyncª - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- Built-in bi-directional RS-232 serial port for high-end system control **
- RS-232 Control:
- Power On Detection - if one VGA source is powered off, the VS0401 will automatically switch to the next powered-on source
- Auto Switching - sets the priority for auto switching to a connected port
- Pushbutton Lock - locks use of the front panel pushbuttons
- Supports stereo audio
- DDC compatible
- Supports up to 300MHz bandwidth for optimal video quality
- LED indication of power status and source device
- All-metal casing provides durability and protection
- Plug-and-play - no software installation required
Package Includes
- 1x VS0401 4-Port VGA Switch with Audio
- 1x Power Adapter
- 1x User Instructions
* Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality.
** Note: The VS0401 AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com)
Product Specifications
| Video Input | |
| Interfaces | 4 x HDB-15 Male |
| Impedance | 75Ω |
| Max Distance | 1.8 m |
| Video Output | |
| Interfaces | 1 x HDB-15 Female |
| Impedance | 75Ω |
| Max Distance | Up to 30m |
| Video | |
| Max Bandwidth | 300 MHz |
| Max Resolution | Up to 1920 x 1440 |
| Max Distance | Up to 30m |
| Audio | |
| Input | 4 x Mini Stereo Jack Female |
| Output | 1 x Mini Stereo Jack Female |
| Control | |
| RS-232 | Connector: 1 x DB-9 Female (Black) Baud Rate and Protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No |
| IR | 1 x Mini Stereo Jack Female |
| Power | |
| Connectors | 1 x DC Jack |
| Consumption | 5.3V DC, 0.55W |
| Environmental | |
| Operating Temperature | VE829R: 32°-122°F (0°-40°C) VE829T: 32°-104°F (0°-40°C) |
| Storage Temperature | VE829R: -4°-140°F (-20°-60°C) VE829T: -4°-140°F (-20°-60°C) |
| Humidity | VE829R: 0-80% RH, Non-Condensing VE829T: 0-80% RH, Non-Condensing |
| Physical | |
| Housing | Metal |
| Weight | 1.45 lb (0.66 kg) |
| Dimensions L x W x H | 7.87 x 3 x 1.73 in. (20.00 x 7.61 x 4.40 cm) |
UPC 672792003684
EAN 0672792003684
