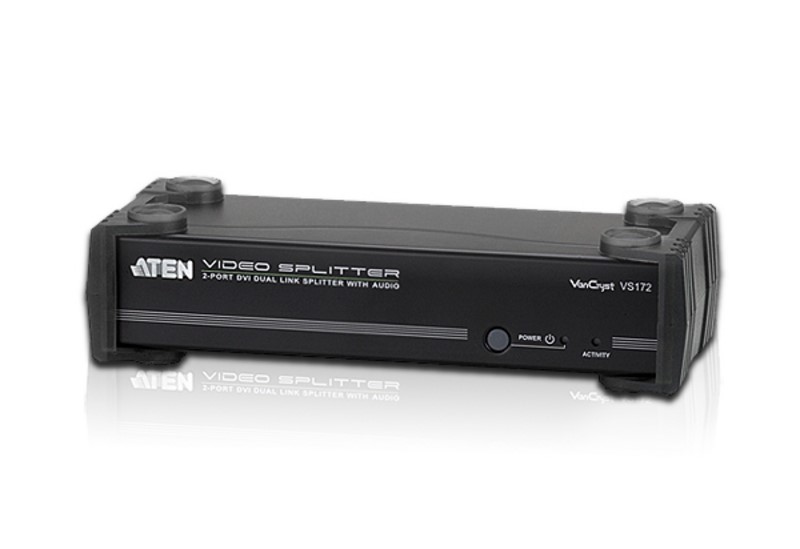

2-Port DVI Dual Link/Audio Splitter
VS172
Save $62.05

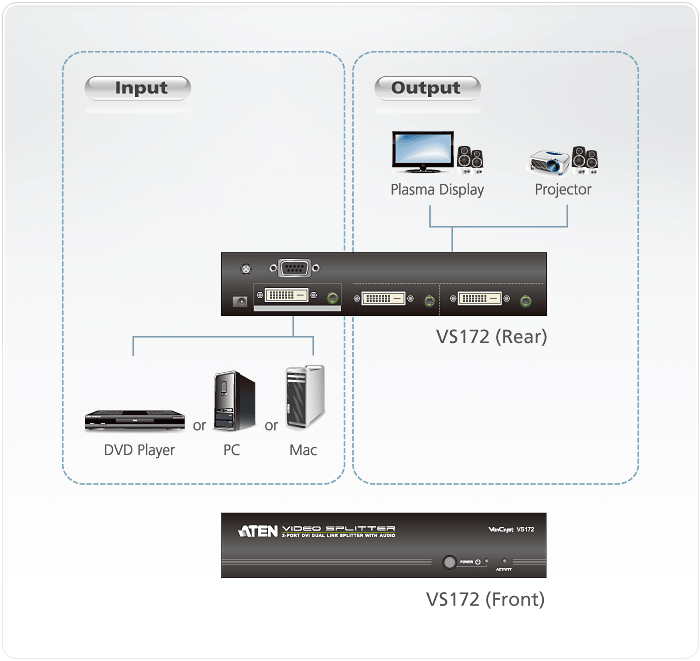

The VS172 2-Port DVI Dual Link Splitter with Audio combines DVI quality video and audio, taking signals from an audio/ video source and replicating them to two audio/video outputs. This video splitter uses dual link technology, which offers high bandwidth capacity for added transmission power and faster refresh rates, thereby providing better video quality of viewing resolutions up to 2560 x 1600.
The built-in bi-directional RS-232 port on the rear panel allows the splitter to be controlled through a Control Unit, PC, and/or home automation/home theater software package for complete system integration.
Product Features
- Displays DVI audio/video to multiple DVI-compatible monitors or projectors
- Superior video quality - up to 2560 x 1600 @ 60 Hz including 2K-resolution (2048 x 2048 @ 60 Hz)
- Cascadable to 3 levels - provides up to 8 video signals
- Audio enabled
- Features RS-232 serial port for command controls
- RS-232 Chain Control - use RS-232 commands to control cascaded devices via a DVI Cable
- EDID Expert - selects the optimum EDID settings via RS-232
Package Includes
- 1x VS172 2-Port DVI Dual Link Splitter with Audio
- 1x Power Adapter
- 1x User Instructions
Product Specifications
| Video Input | |
| Interfaces | 1 x DVI-D Female |
| Impedance | 100Ω |
| Max Distance | 1.8 m |
| Video Output | |
| Interfaces | 2 x DVI-D Female |
| Impedance | 100Ω |
| Video | |
| Max Data Rate | 13.5 Gbps (2.25 Gbps Per Lane) |
| Max Pixel Clock | 225 MHz |
| Max Resolution | Up to 2560 x 1600 |
| Max Distance | Up to 5m |
| Audio | |
| Input | 1 x Mini Stereo Jack Female |
| Output | 2 x Mini Stereo Jack Female |
| Control | |
| RS-232 | Connector: 1 x DB-9 Female (Black) Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No |
| EDID Settings | EDID Mode: Default / Port 1 / Auto |
| Power | |
| Connectors | 1 x DC Jack |
| Consumption | 5.3 VDC, 3.1W |
| Environmental | |
| Operating Temperature | VE829R: 32°-122°F (0°-40°C) VE829T: 32°-104°F (0°-40°C) |
| Storage Temperature | VE829R: -4°-140°F (-20°-60°C) VE829T: -4°-140°F (-20°-60°C) |
| Humidity | VE829R: 0-80% RH, Non-Condensing VE829T: 0-80% RH, Non-Condensing |
| Physical | |
| Housing | Metal |
| Weight | 1.5 lb (0.68 kg) |
| Dimensions L x W x H | 8.27 x 3.46 x 2.19 in. (21.00 x 8.80 x 5.55 cm) |
UPC 672792003691
EAN 0672792003691
