SmartAVI VS4P 4-port VGA Splitter
VS4PS
Save $43.94

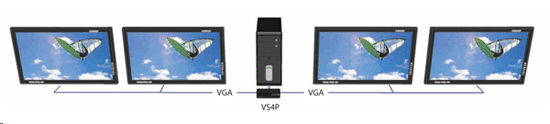

The VS4P is a 4-port WUXGA splitter that allows a computer to display one VGA video signal on four monitors simultaneously.The VS4P enhances any presentation from commercial products to corporate financial data. It can be used in show rooms, board rooms, trade shows and window displays. Data Broadcasting Data such as news, stock prices, sports results, and flight information can be broadcast in real time to various monitors.
Features
- Split WUXGA signal into four ouputs
- Resolutions up to 1600x1200 @ 85Hz and up to 2048x1536 @ 60Hz
- Easy installation
- 300 MHz Bandwidth
- Compact metal enclosure
Applications
- Home Theater Integration
- Restaurants and Bars
- Digital Signage Deployment
- Information Kiosks/Displays
- Film/Recording Studios
SmartAVI VS4P Specifications
| Mechanical | |
| Height | 1.62 in. (4.11 cm) |
| Width | 7.75 in. (19.68 cm.) |
| Depth | 3.37 in. (8.57 cm.) |
| Format | VGA RGB Analog |
| Resolution | Up to 1600x1200 @ 85Hz 2048x1536 @60Hz |
| Input Interface | (4) HD-15 Female |
| Output Interface | (1) HD-15 Male |
| H Frequency Range | 30-95KHz |
| V Frequency Range | 50-180Hz |
| Power | External 5VDC2A |
| DDC Signal | 5 Volts [peak-to-peak], TTL |
| TDMS Signal | 1.2 Volts [peak-to-peak], TTL |
| Weight | 0.5 lbs |
UPC 813280020381
EAN 0813280020381
