SmartAVI UXGA/Audio/RS-232/IR CAT5 Receiver (Only)
XTPRO-RX-S
Save $54.09
The SmartAVI XTPRO-RX is the receiver unit for the a high resolution UXGA and stereo audio XTPRO extender system (transmitter and receiver) designed to broadcast desktop video, stereo audio signals, IR and RS232 over unshielded twisted pair (UTP) cabling. With RS232 communication support the XTPRO allows users to send commands to single or multiple devices. This allows the user to change the volume, channel or turn on/off the display panel remotely.
SmartAVI XTP-RX Features:
- Supports Dual Screens.
- Uses easy to install, inexpensive CAT-5/5e/6/7/8 .
- Each Output reaches up to 1,000 feet (300 m).
- Supports high resolutions up to 1900x1200.
- HDTV compatible (720p, 1080i, 1080p)
- 300 MHz Bandwidth.
- Sends high-resolution VGA, stereo audio signals, RS232 or IR from one source to 2 locations
- Compatible with VGA, XGA, Sun, MAC and SGI
- Sync Format / Polarity Preservation.
- Compatible with Line Level Stereo Audio Signals.
- High ground loop immunity.
- Built-in power surge and transient protection.
- Designated trimmer in the remote unit to compensate for cable length.
- Compact Metal Case Enclosure.
- External power supply
- RS-232 communication support to single or multiple displays.
- IR command to single or multiple displays

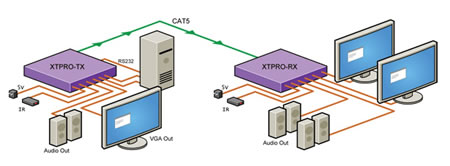

SmartAVI XTPRO Extender Application Diagram
SmartAVI XTP-RX Specifications:
| Mechanical | Receiver | Transmitter |
| Height | 0.91 in. (23 mm.) | 0.91 in. (23 mm.) |
| Width | 3.7 in. (95 mm.) | 3.7 in. (95 mm.) |
| Depth | 3.1 in. (80 mm.) | 3.1 in. (80 mm.) |
| Weight | 0.26 lb. (0.12 kg.) | 0.26 lb. (0.12 kg.) |
| Power | ||
| RS232 | 19200 300bps TXD, RXD | N/A |
| Requirements | 5VDC @ .5A | 5VDC @ .5A |
| Connector | 2.1mm DC jack (center +ve) | 2.1mm DC jack (center +ve) |
| Video Data | ||
| Bandwidth | 400MHz | 400MHz |
| Analog Signal Level | 1volt | 1volt |
| Impedance | 10K ohms | 10K ohms |
| Format | RGBHV, RGsB, YUV, Y/C, CVBS | RGBHV, RGsB, YUV, Y/C, CVBS |
| Resolution | Up to 1900 x 1200 VGA, SVGA, XGA, SXGA | Up to 1900 x 1200 VGA, SVGA, XGA, SXGA |
| Sync | TTL horizontal SyncRange: 15 to 130 KHz Vertical Sync Range 30 to 120 Hz | |
| Connector Type | HD 15 socket | HD 15 socket |
| Audio | ||
| Signal Type | Stereo unbalanced | Stereo unbalanced |
| Connector | 3.5mm jack socket | 3.5mm jack socket |
| Bandwidth | 20KHz | 20KHZ |
| Signal Level | 0dB | 0dB |
| Impedance | 10K ohms | 10K ohms |
| Connector | 3.5mm jack socket | 3.5mm jack socket |
| System and Cable | ||
| Type | CAT5 UTP EIA 568A | |
| Connector | RJ45 | |
The XTPRO-RX-S is also known as the XTP-RX-S and the XTP-RXS
UPC 813280024075
EAN 0813280024075
